GEAR HOBBING, CIMA – P4 AU – SECOND

Country

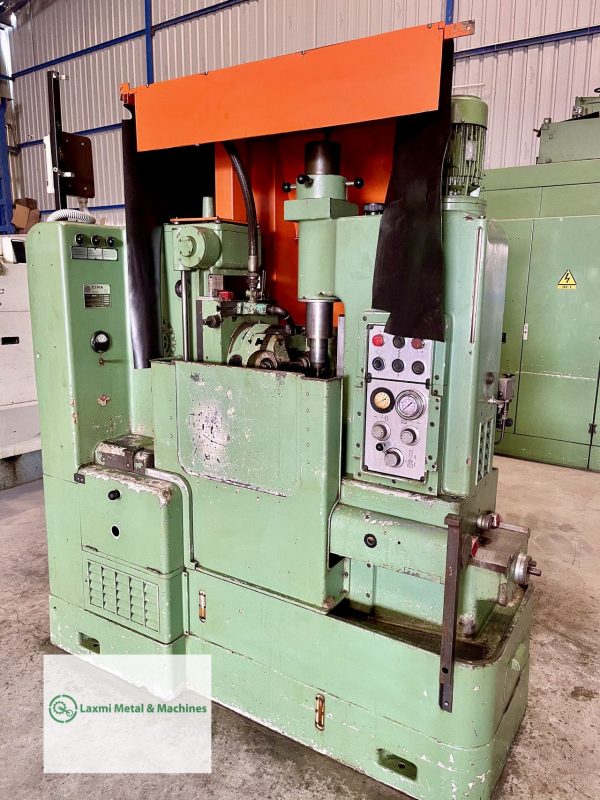

Here’s our SECOND GEAR HOBBING MACHINE

It is in excellent working condition, for any information we are at your disposal.



SKU: gear-hobbing-cima-p4-au-second Category: Tags: , , , , ,

Description

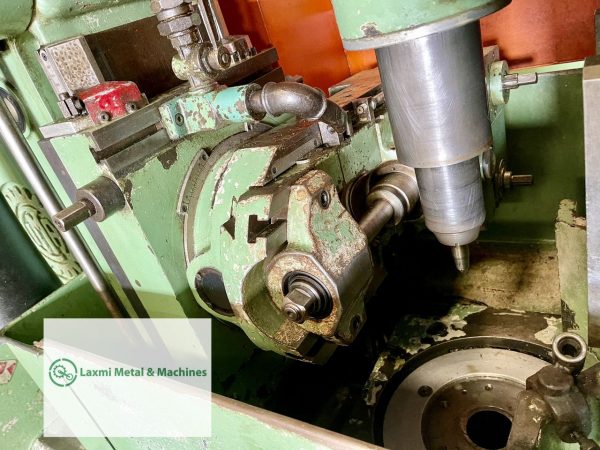

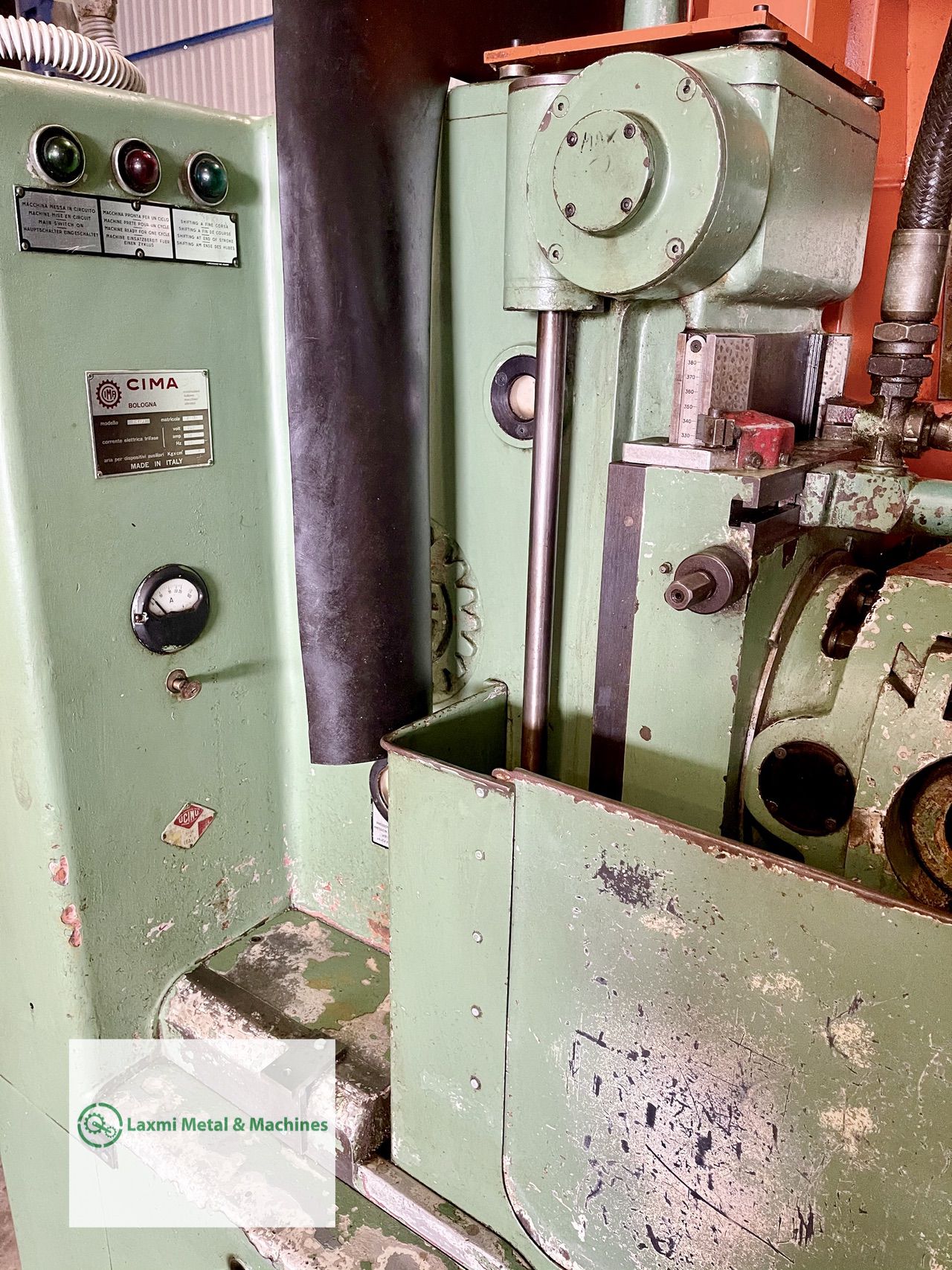

GEAR HOBBING

Make : CIMA

Mod: P4 AU

WORKING CAPACITY
STRAIGHT BEVEL GEARS AND SLOTED SHAFTS

  • Max. gear diameter: mm. 250
  • Min. gear diameter: mm. 0
  • Max. module until Ø 100: 6
  • Max. module from Ø 100 to 175: 5
  • Max. module from Ø 175 to 250: 4
  • Max. gear length: mm. 220
  • Min. nr of cutting gears: 4
  • Max. nr of cutting gears: 272

HELICAL GEARS

  • Max. inclination: 45°
    Gear width with head inclination:
  • 0°÷25°:  220 mm.
  • 30°: 215 mm.
  • 35°: 210 mm.
  • 40°: 208 mm.
  • 45°: 124 mm.

SPECIFICATIONS

  • Diameter x width, max. :  120×120 mm.
  • Max. hob movement (Shifting):  75 mm.
  • Diameter of pieces-holder table:  250 mm.
  • Wheel diameter:  358 mm.
  • Hob speed: nr. 16
  • Hob rpm: 70-95-98-119-130-140-143-160- 190-197-238-260-286-320-394-476
  • Vertical feed hob holder slide for table round:  0.5-4 mm.
  • Horizontal feed pieces-holder slide for table round:  0.1-5 mm.
  • Speed of hob holder slide:  650 mm/min.
  • Speed of pieces-holder slide:  650 mm/min.
  • 1 principal motor two speeds: 5 Kw (cv 7),  1500-3000 rpm
  • 1 motor to rapids movement: 1.5 Kw (cv 2),  3000 rpm
  • 1 motor hydraulic group: 1.1 Kw (cv 1.5), 1500 rpm
  • 1 coolant electric pump type immersed: 0.25 Kw (cv 0)
  • Weight of machine: 4000 kg.
