Description

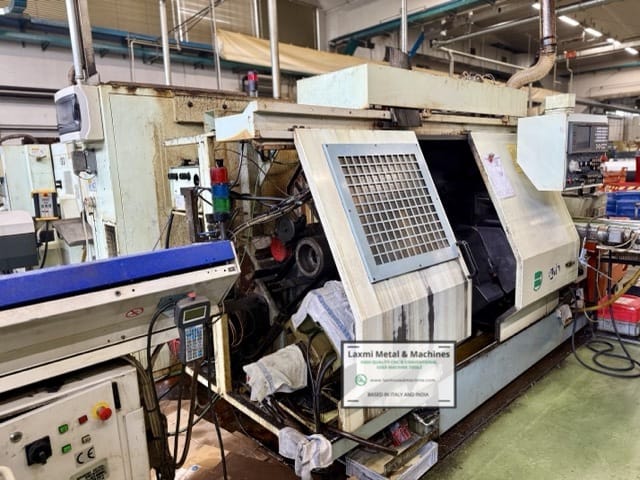

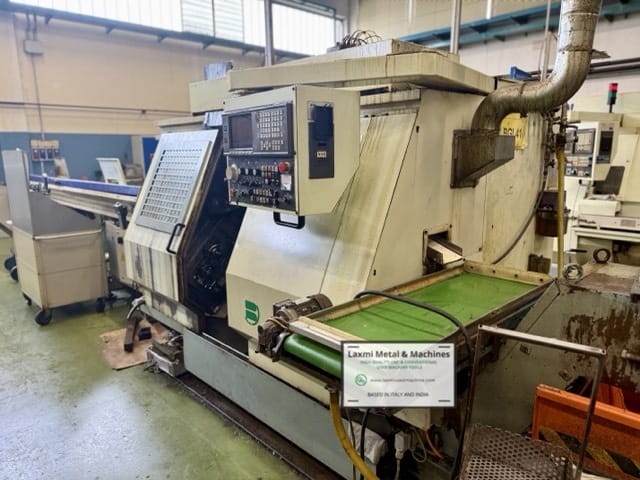

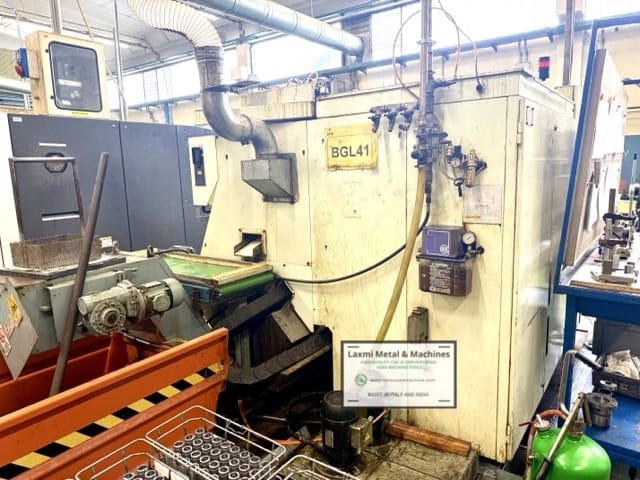

TWIN SPINDLE + TWIN TURRET + Y AXIS + LIVE TOOLS
CNC LATHE
- Make: Biglia
- Model: B42 S2M
- CNC: GE Fanuc 0-T
- Main Spindle: 100–5,000 RPM, 11–15 kW power, ASA 5″ spindle nose, 52 mm outer bearing / 42 mm bar capacity (41 mm max turning)
- Sub-Spindle : 100–5,000 RPM, 3.7–5.5 kW power, ASA 4″ spindle nose, 42 mm bore.

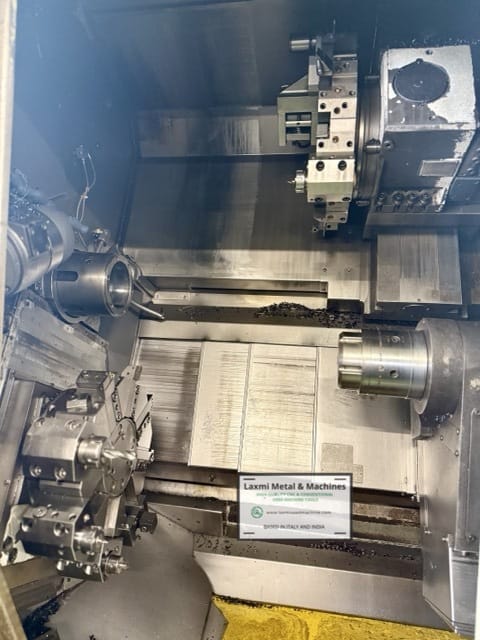

- Turrets (Dual): 2 bi-directional turrets with 12 positions each (featuring live tool capabilities on stations).
- Axis Travels: Turret 1 (X = 175 mm, Z = 305 mm); Turret 2 (X = 132 mm, Z = 155 mm).
- Capacity: Max turning diameter 160 mm, max turning length 300 mm.
Key Features & Automation
- Twin Turrets: Allows simultaneous or independent machining on the main and sub-spindles to reduce cycle times.
- Live Tooling: Driven tools on the turrets permit secondary milling, drilling, and tapping operations.
- Bar Loading Integration: Commonly paired with automatic bar loaders (such as IEMCA models) for lights-out production runs
