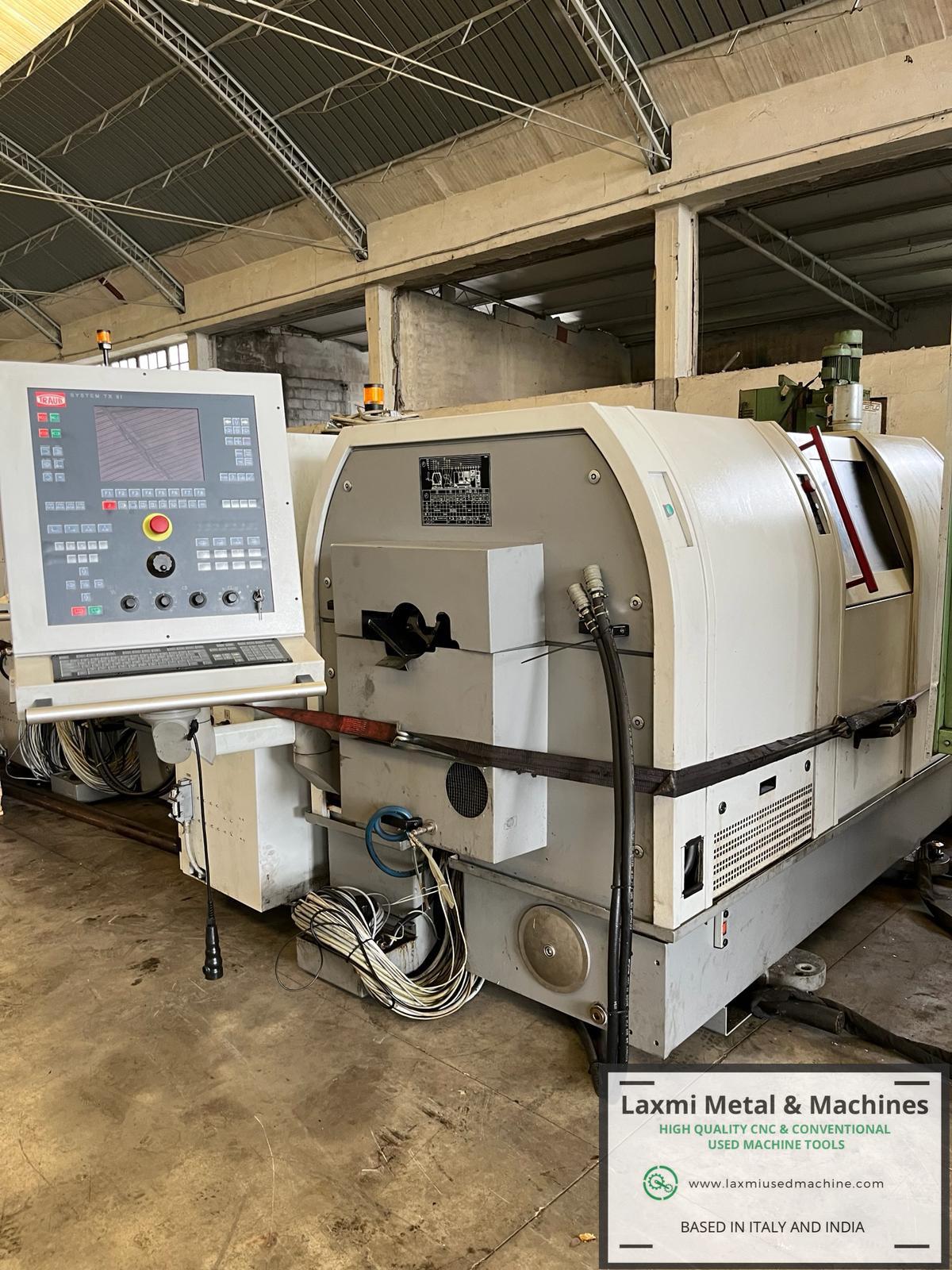

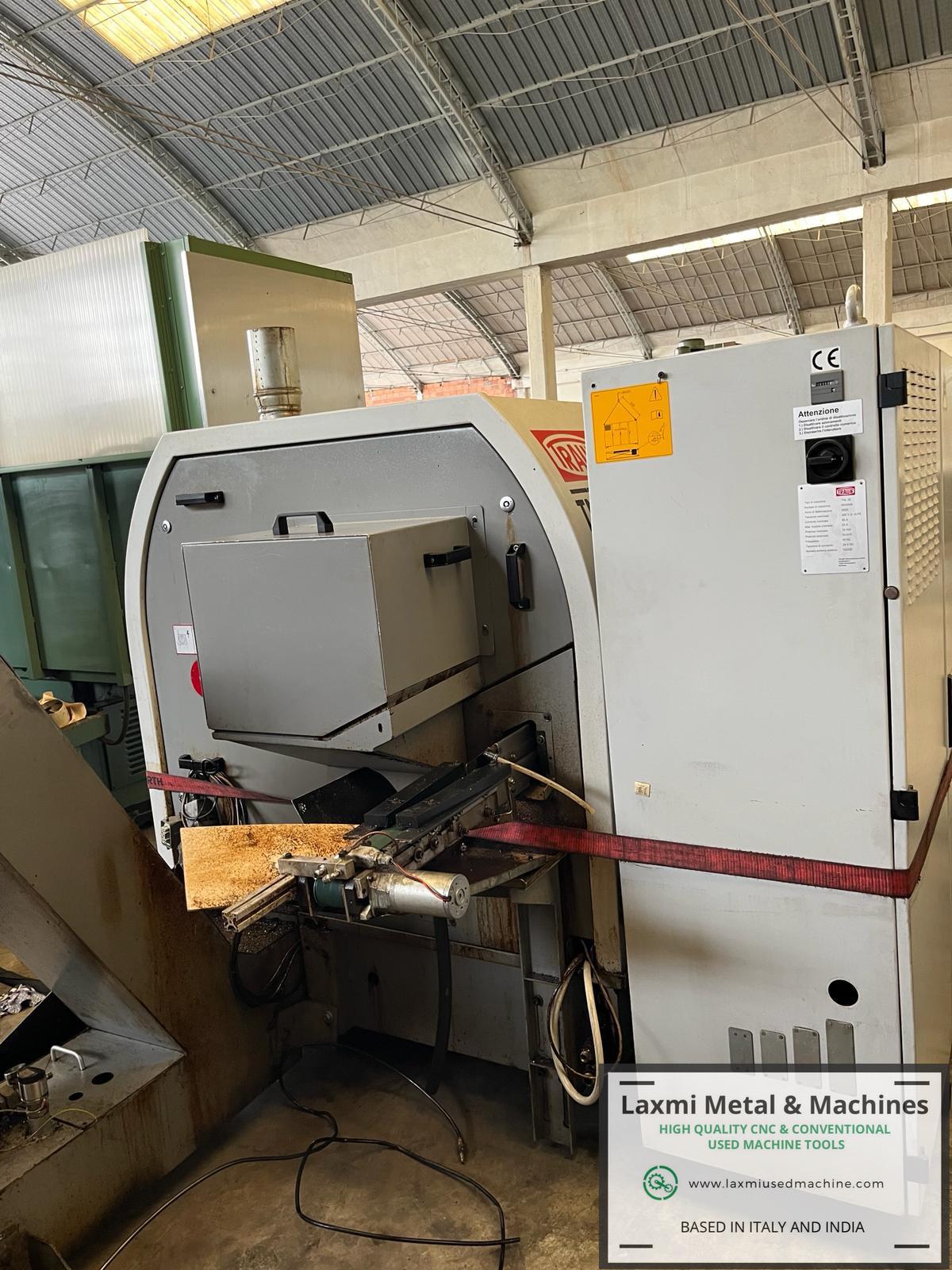

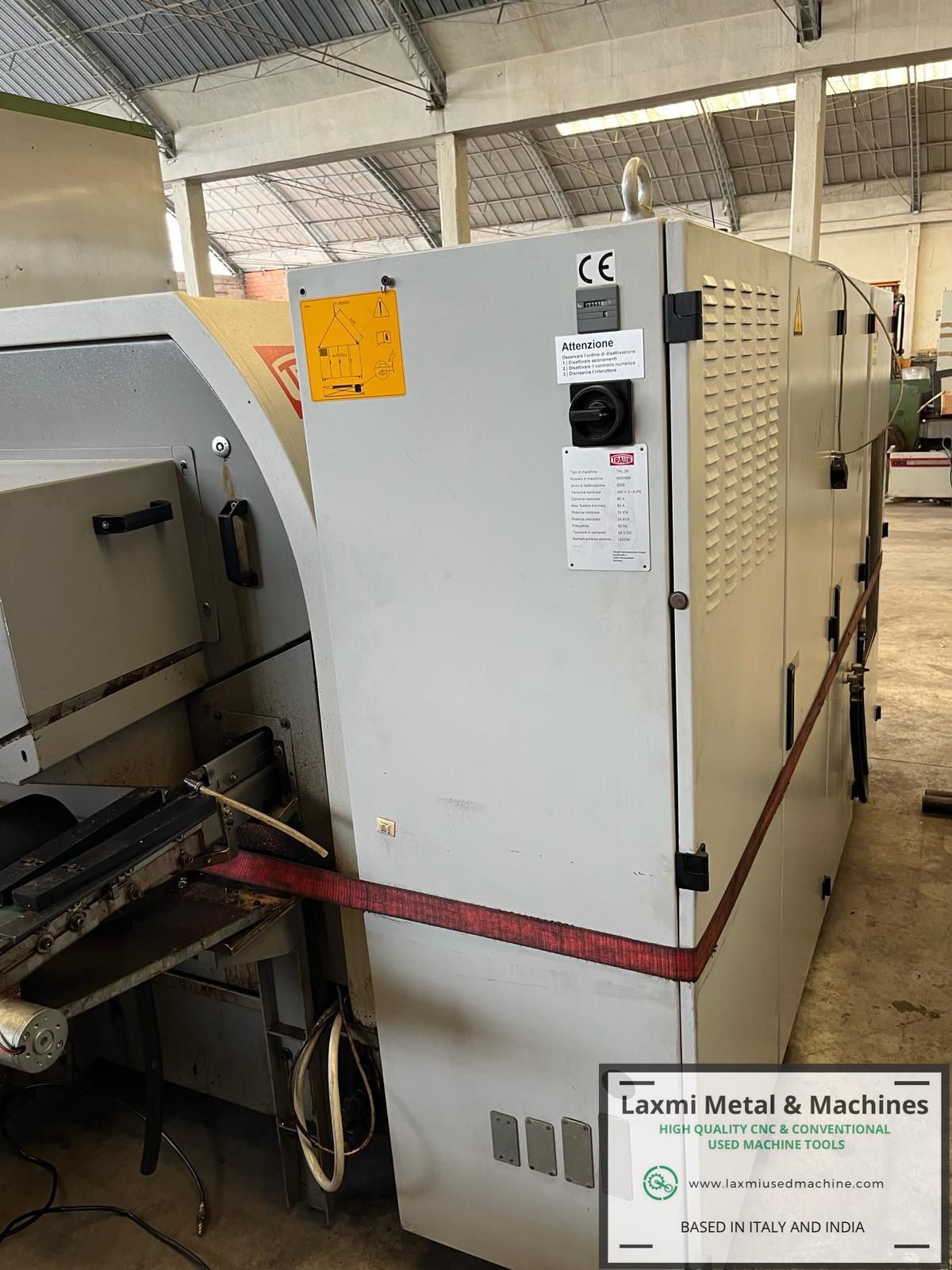

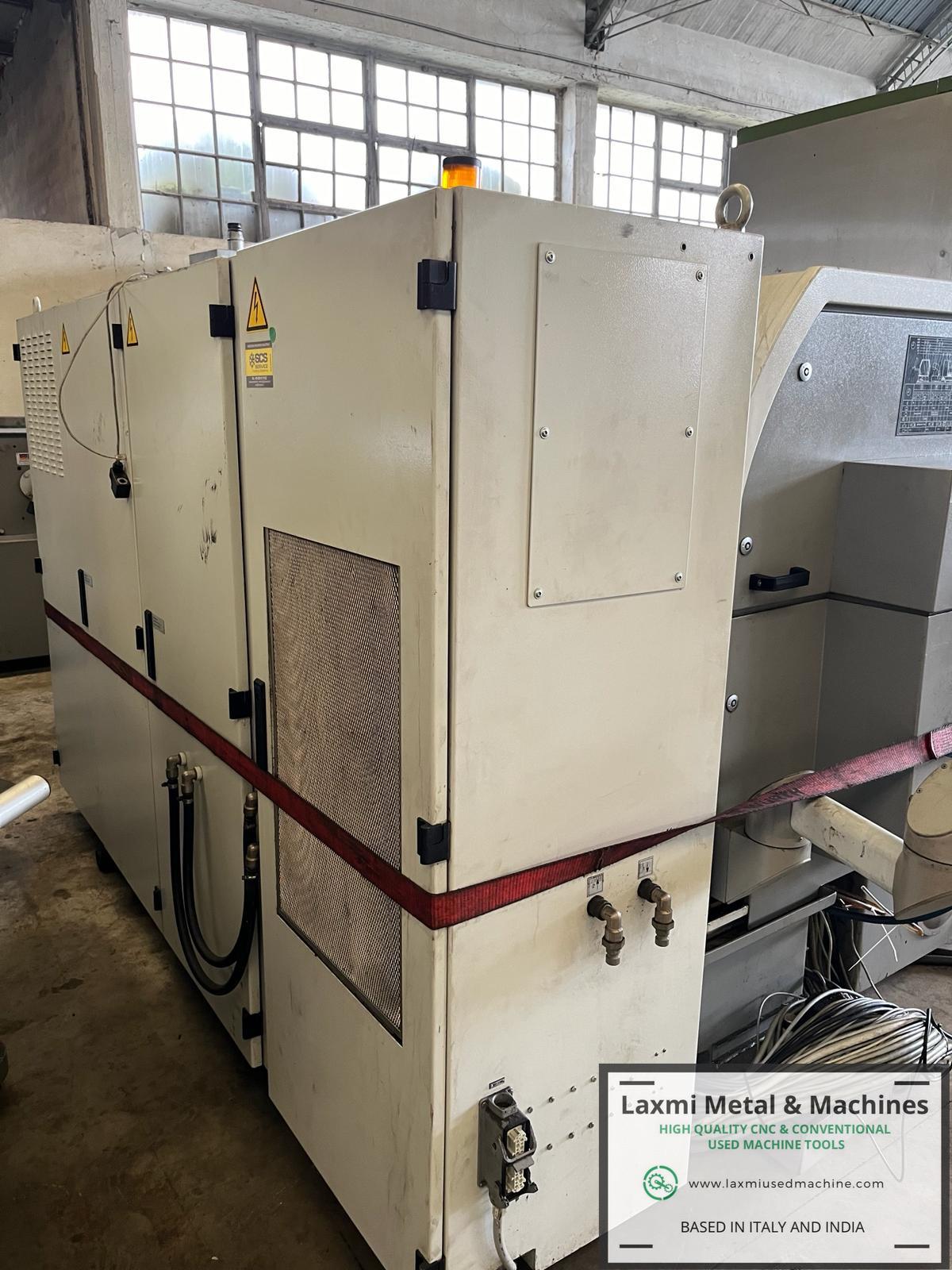

CNC SWISS-TYPE LATHE, TRAUB – TNL 26

Country

Here’s our CNC SWISS-TYPE LATHE,

It is in excellent condition, for any further information we are at your disposal!

SKU: cnc-swiss-type-lathe-traub-tnl-26-2 Category: Tags: , , ,

Description

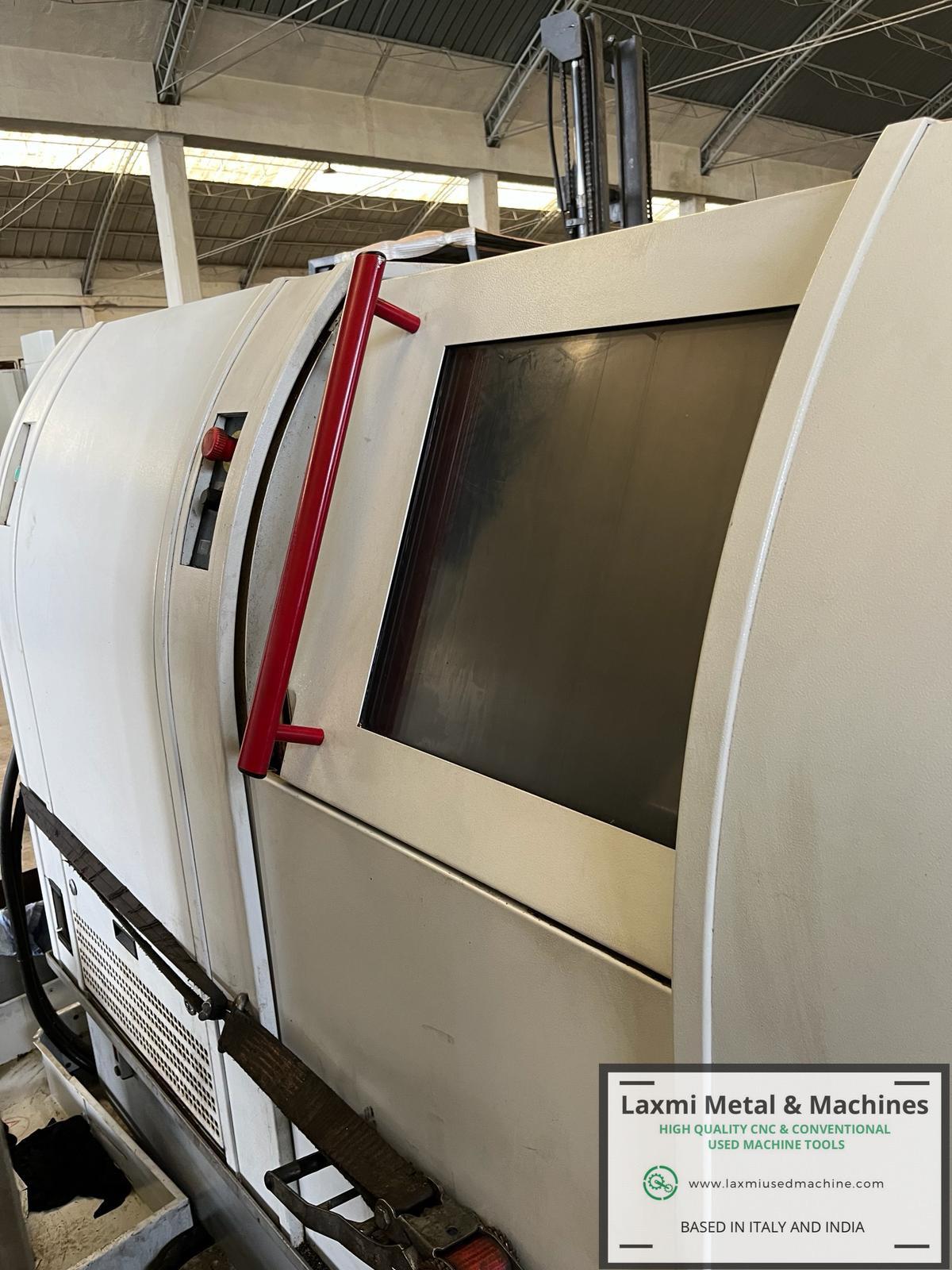

CNC SWISS-TYPE LATHE

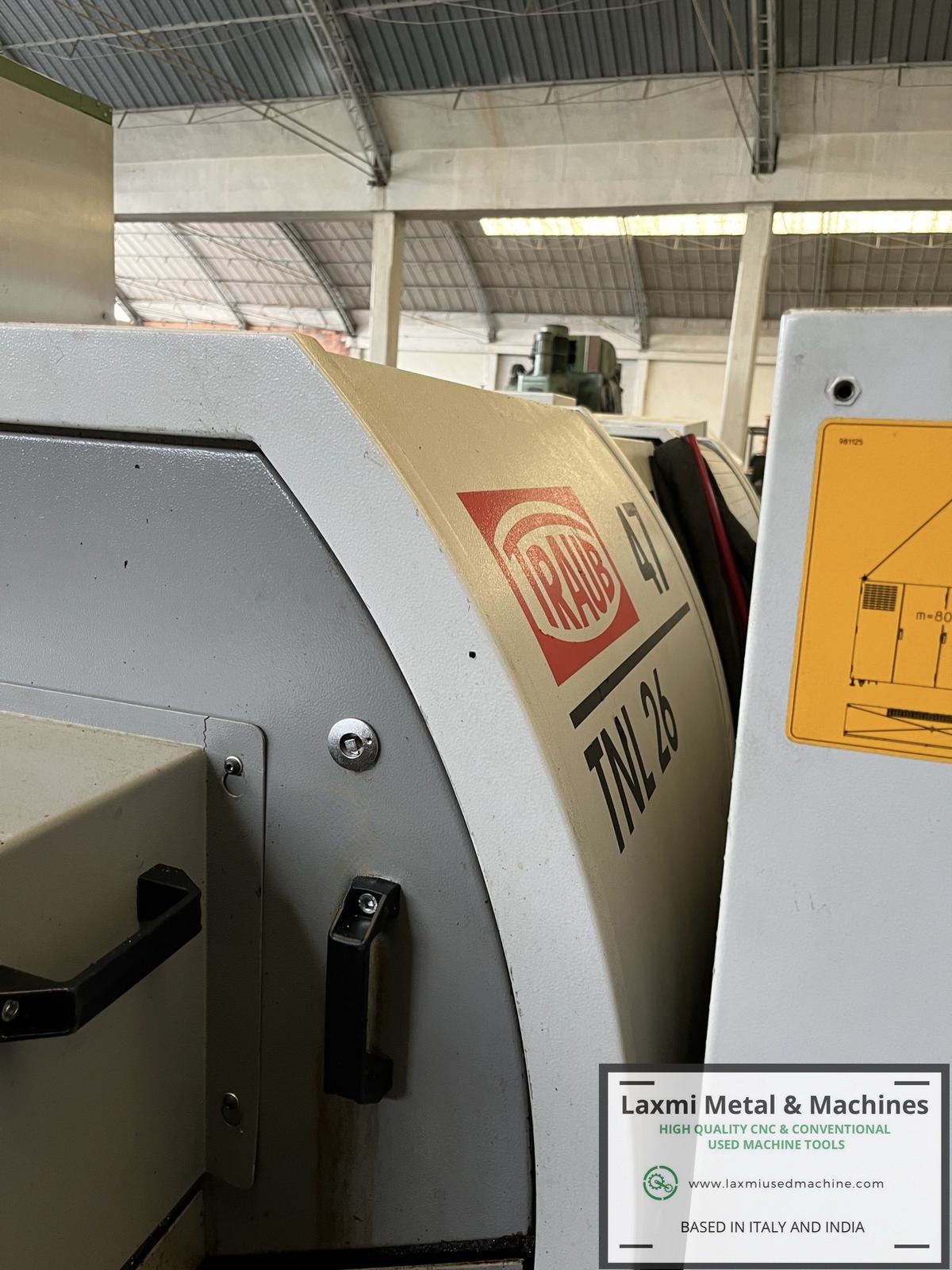

  • Make: Traub
  • Model: TNL 26

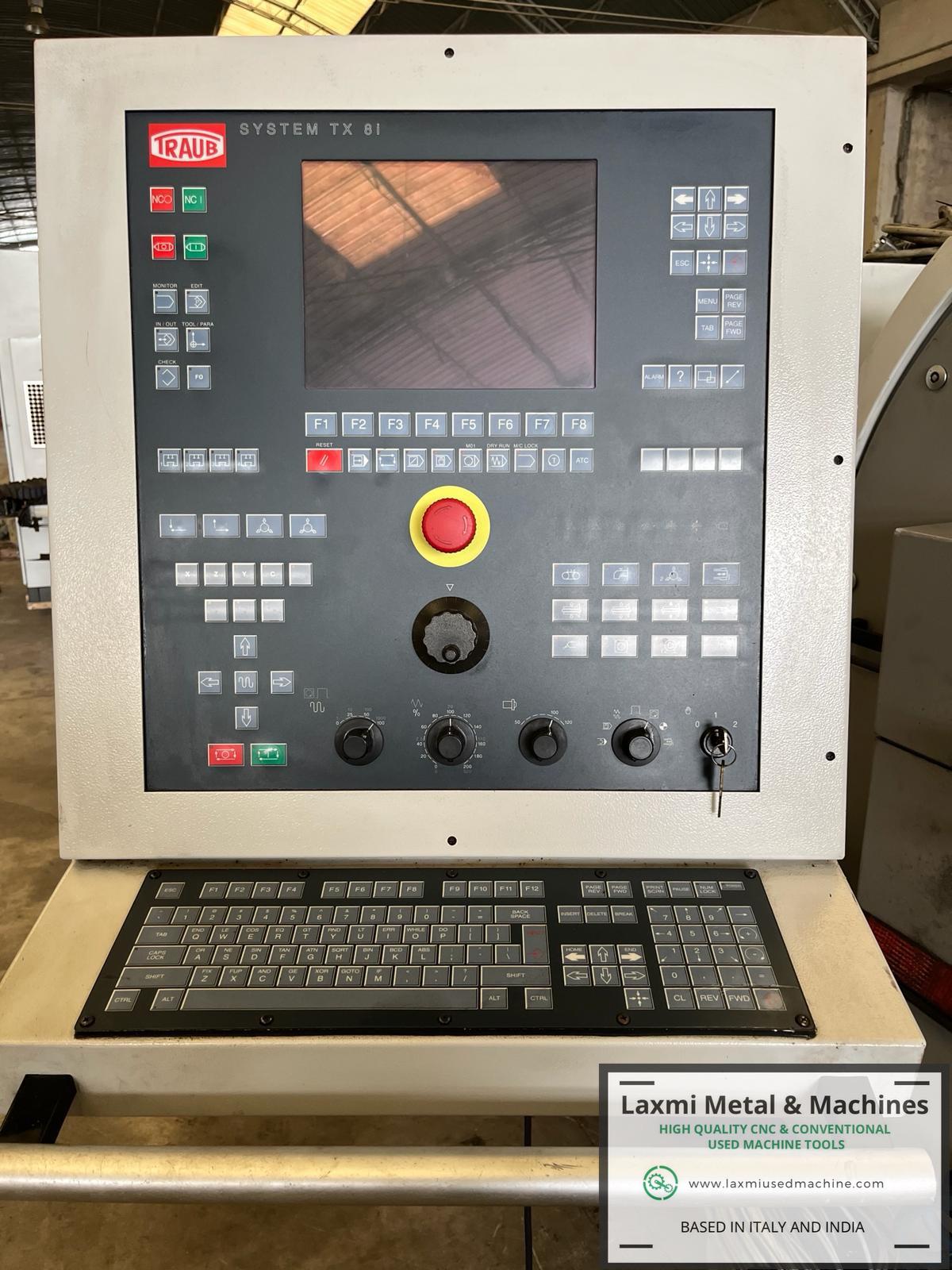

  • CNC: Traub TX 8i
  • Y.O.M.: 2005
  • Number of axes : 13
  • – Number of spindles : 2

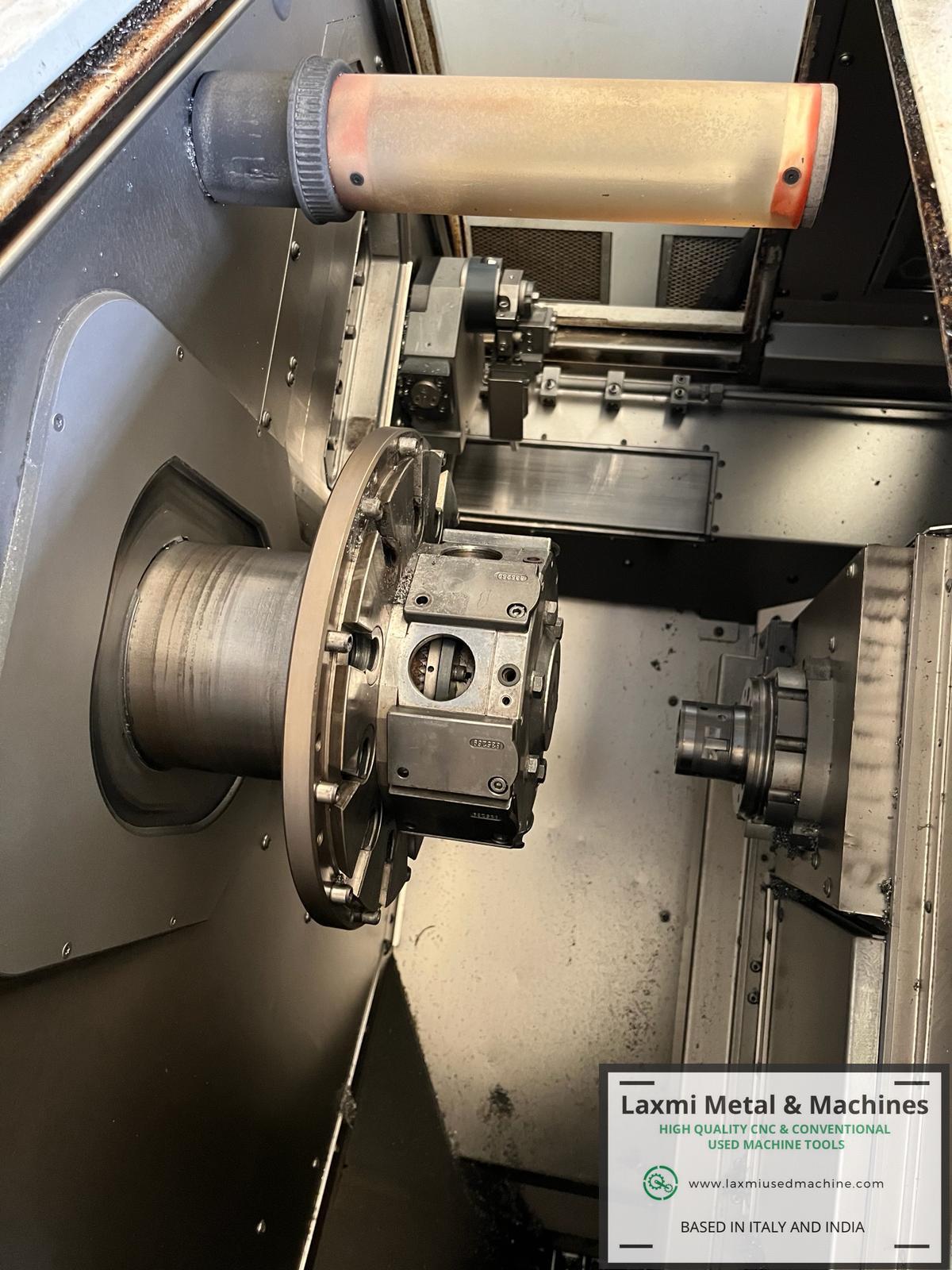

    MAIN SPINDLE
  • Max. bar diameter : 26 [mm]
  • Max. machining length : 225 [mm]
  • Travel : 250 [mm]
  • Spindle speeds : 8000 [rpm]
  • Spindle power : 11 [kW]
  • C axis indexing precision : 0.001 [°] COUNTER-SPINDLE
  • Max. bar diameter : 26 [mm]
  • Z stroke : 250 [mm]
  • X stroke : 370 [mm]
  • Spindle speeds : 8000 [rpm]
  • Spindle power : 11 [kW]
  • C axis indexing precision : 0.001 [°]

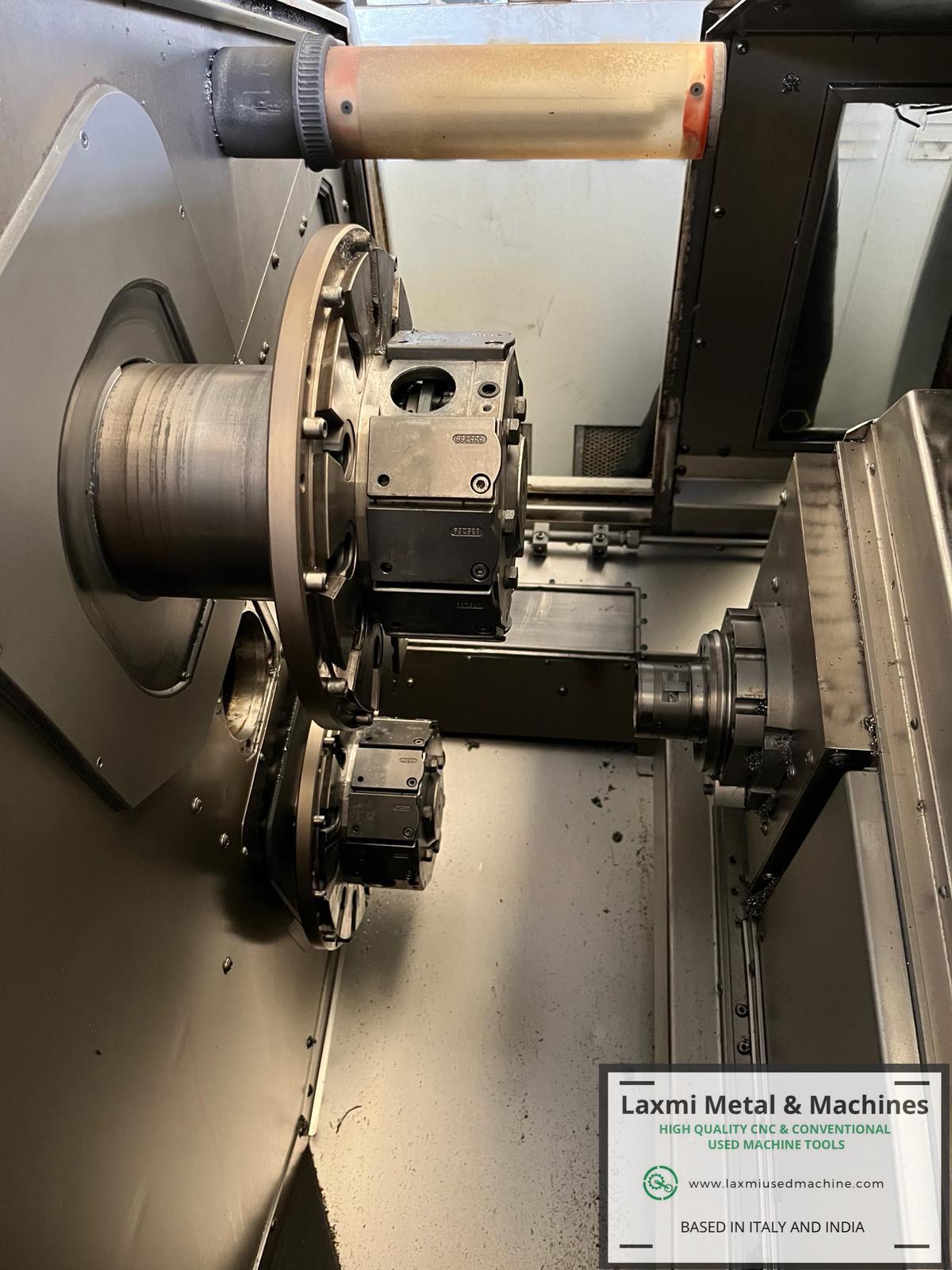

  • Number of turrets : 2

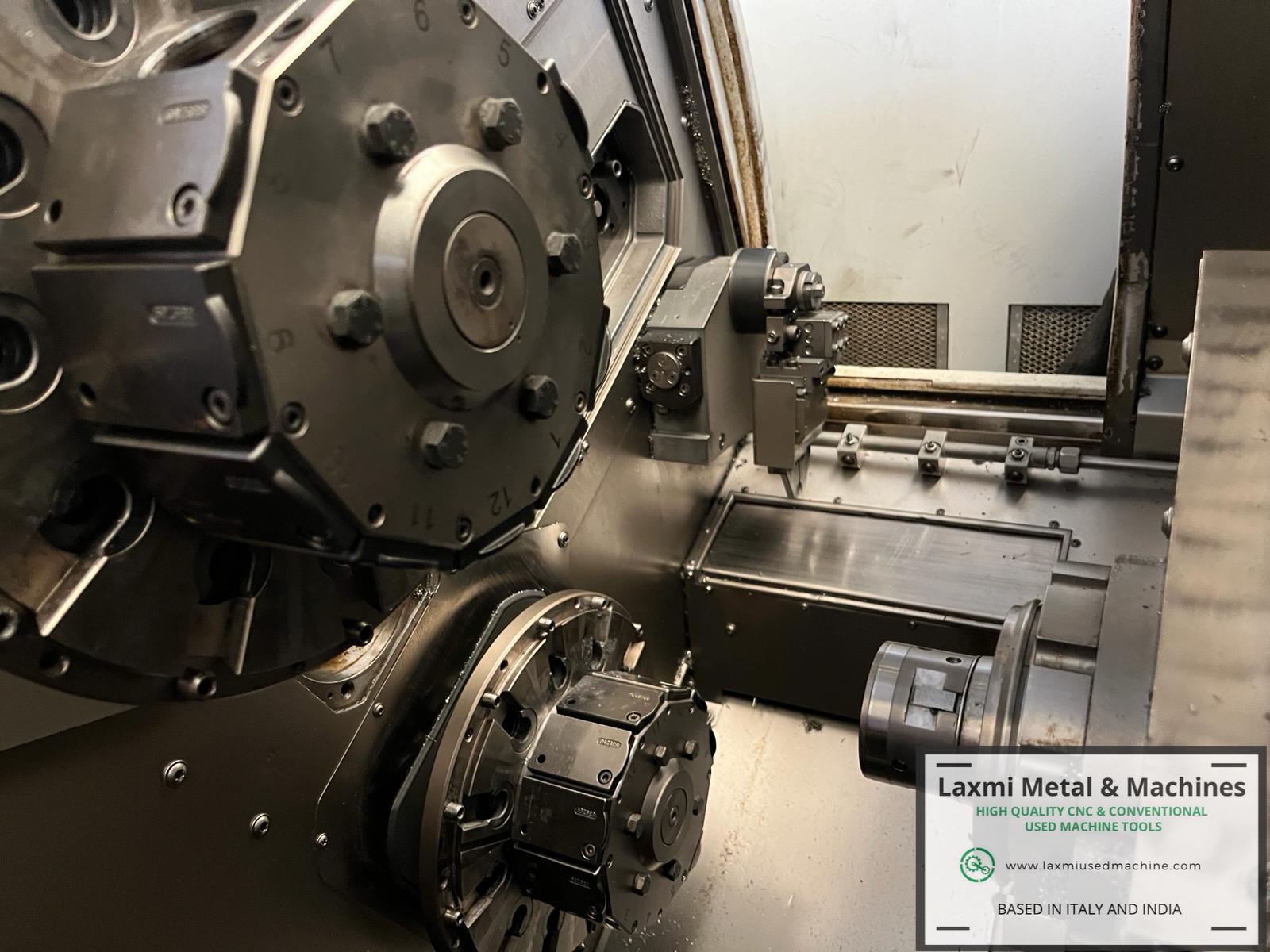

    UPPER TURRET
  • Number of positions : 12
  • Number of motorized positions : 12
  • X stroke : 50 [mm]
  • Z stroke : 100 [mm]
  • Y stroke : +/-20 [mm]
  • Live tools speed : 6000 [rpm]
  • Live tools power : 4.3 [kW] LOWER TURRET
  • Number of positions : 12
  • Number of motorized positions
  • X/Z stroke : 50 [mm]
  • Y stroke : +/-20 [mm]
  • Live tools speed : 6000 [rpm]
  • Live tools power : 4.3 [kW] END ATTACHMENT
  • Number of positions : 5
  • Number of motorized positions : 4
  • Live tools speed : 6000 [rpm]
  • X/Z stroke : 370/250 [mm] SECONDARY OPERATION
  • Number of positions : 5
  • Number of motorized positions : 4
  • Live tools speed : 6000 [rpm]
  • X stroke : 73 [mm]

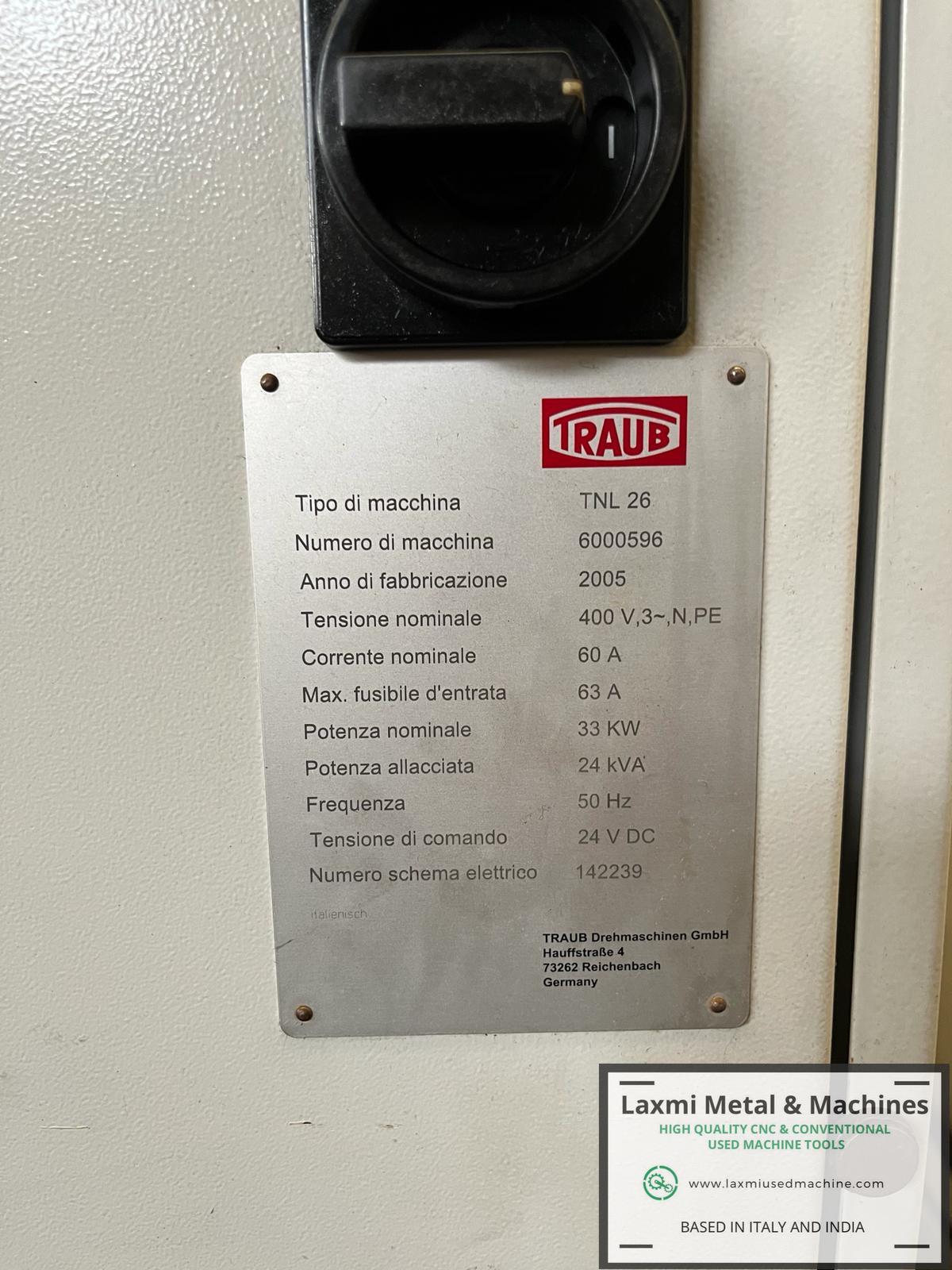

  • Y stroke : +/-50 [mm] POWER SUPPLY
  • Supply voltage : 400 [V]
  • Total installed power : 33 [kW] WEIGHT & DIMENSIONS
  • Machine floor space : 3706/1292 [mm]
  • Machine height : 1630 [mm]
  • Machine weight : 4000 [kg]
  • Equipment

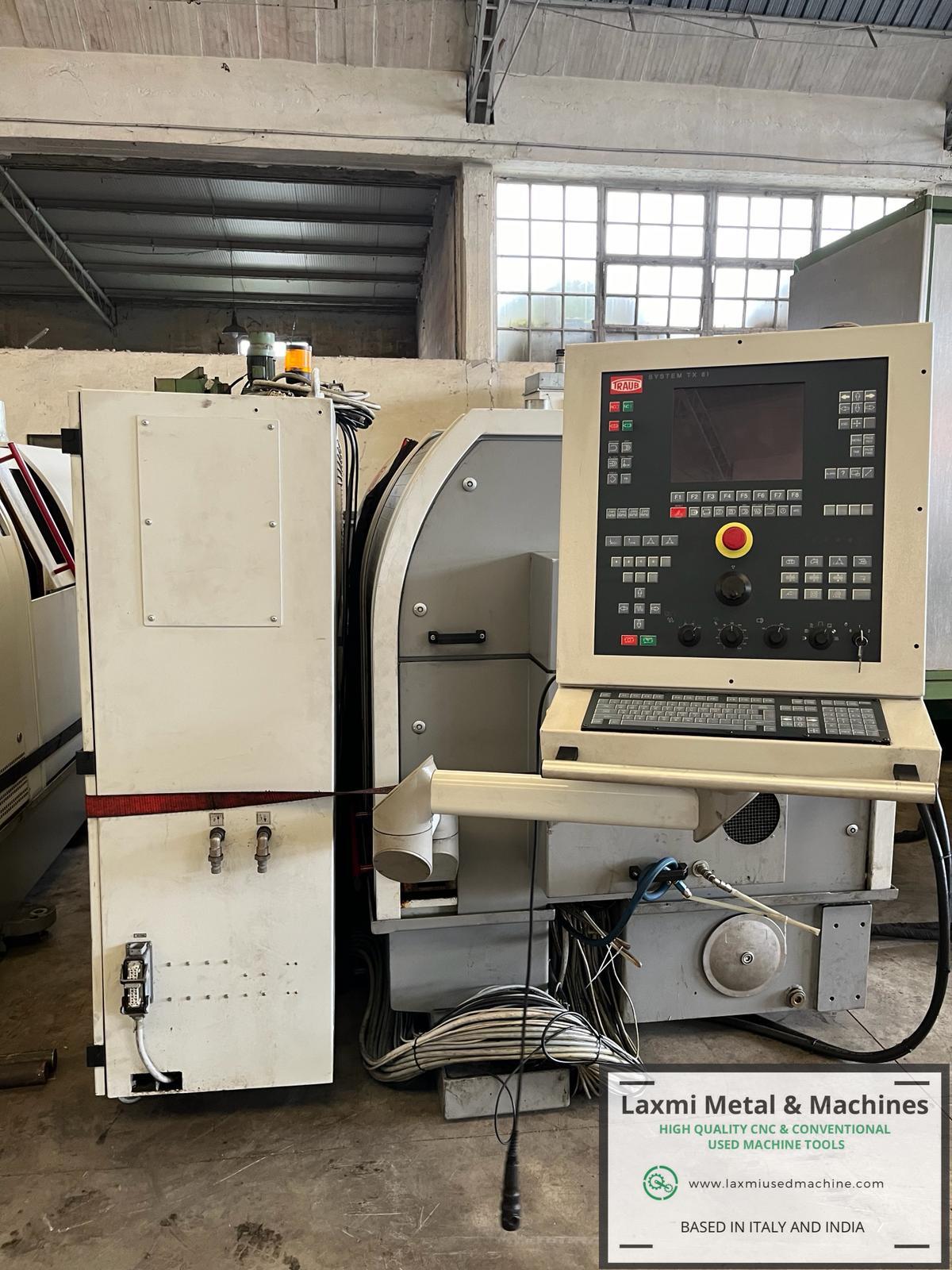

  • – CNC : TRAUB TX8i
  • Rotating guide bush
  • Parts catcher
  • Parts conveying strip
  • Ejection of workpiece

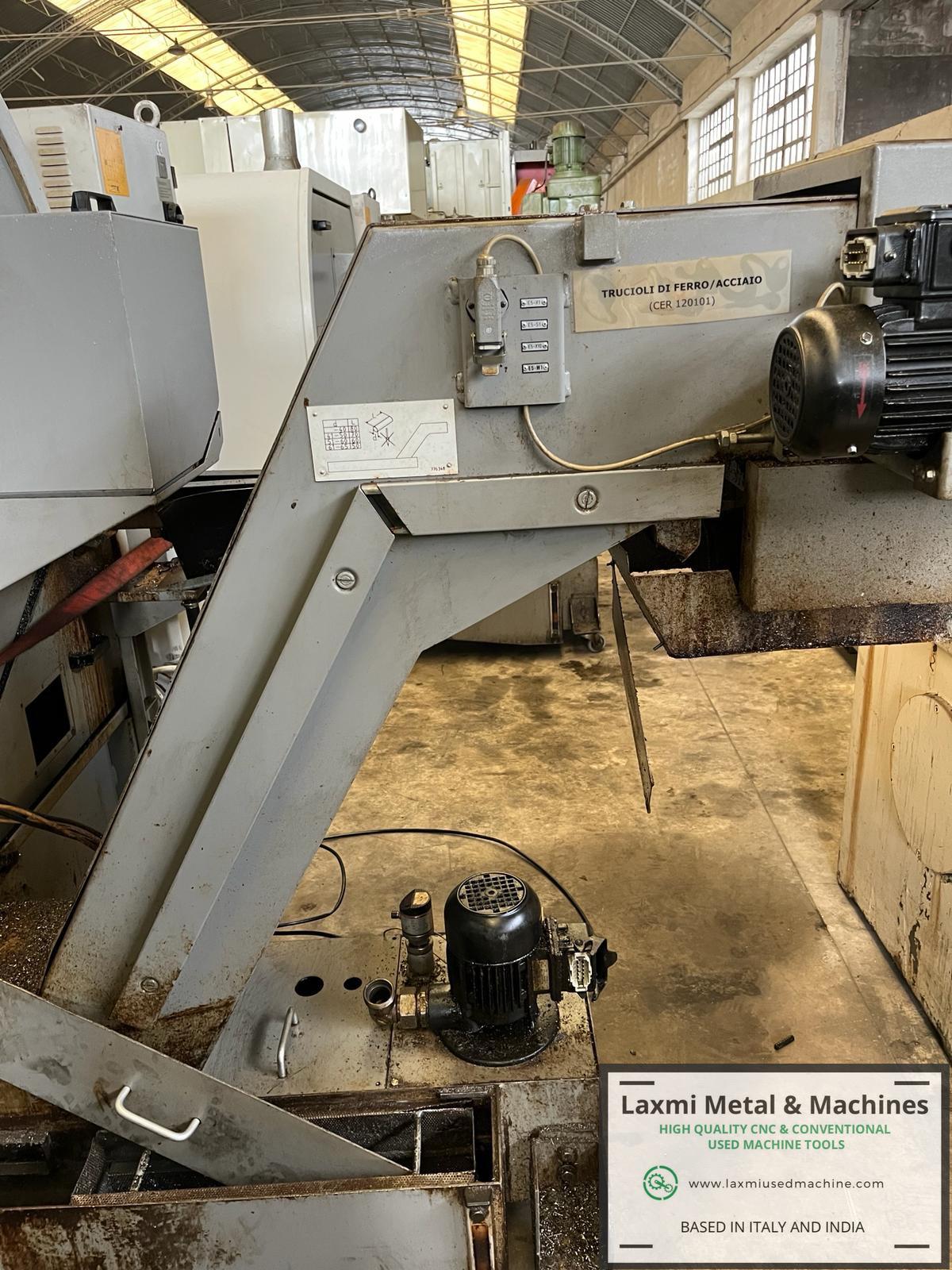

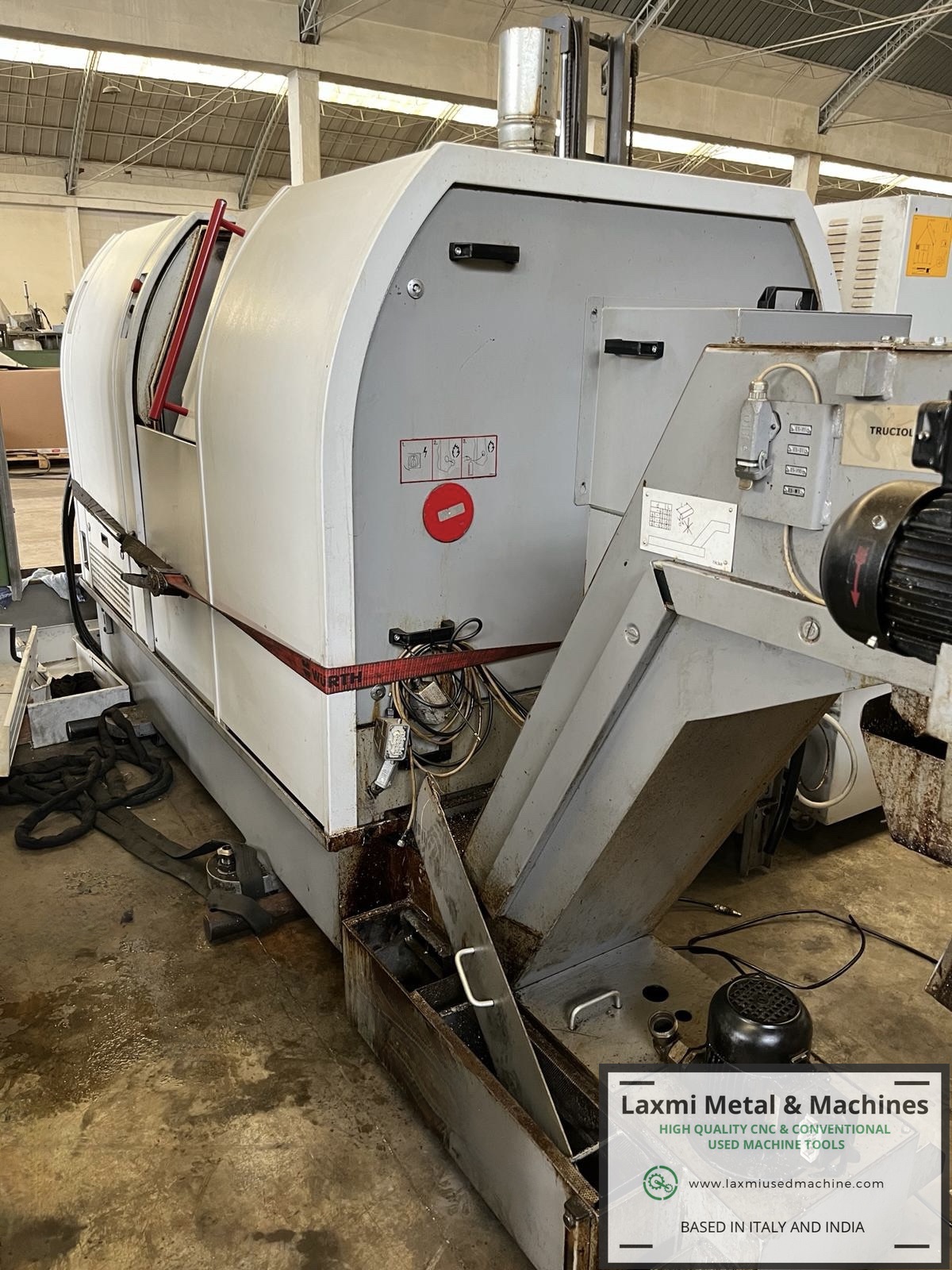

  • Chips conveyor

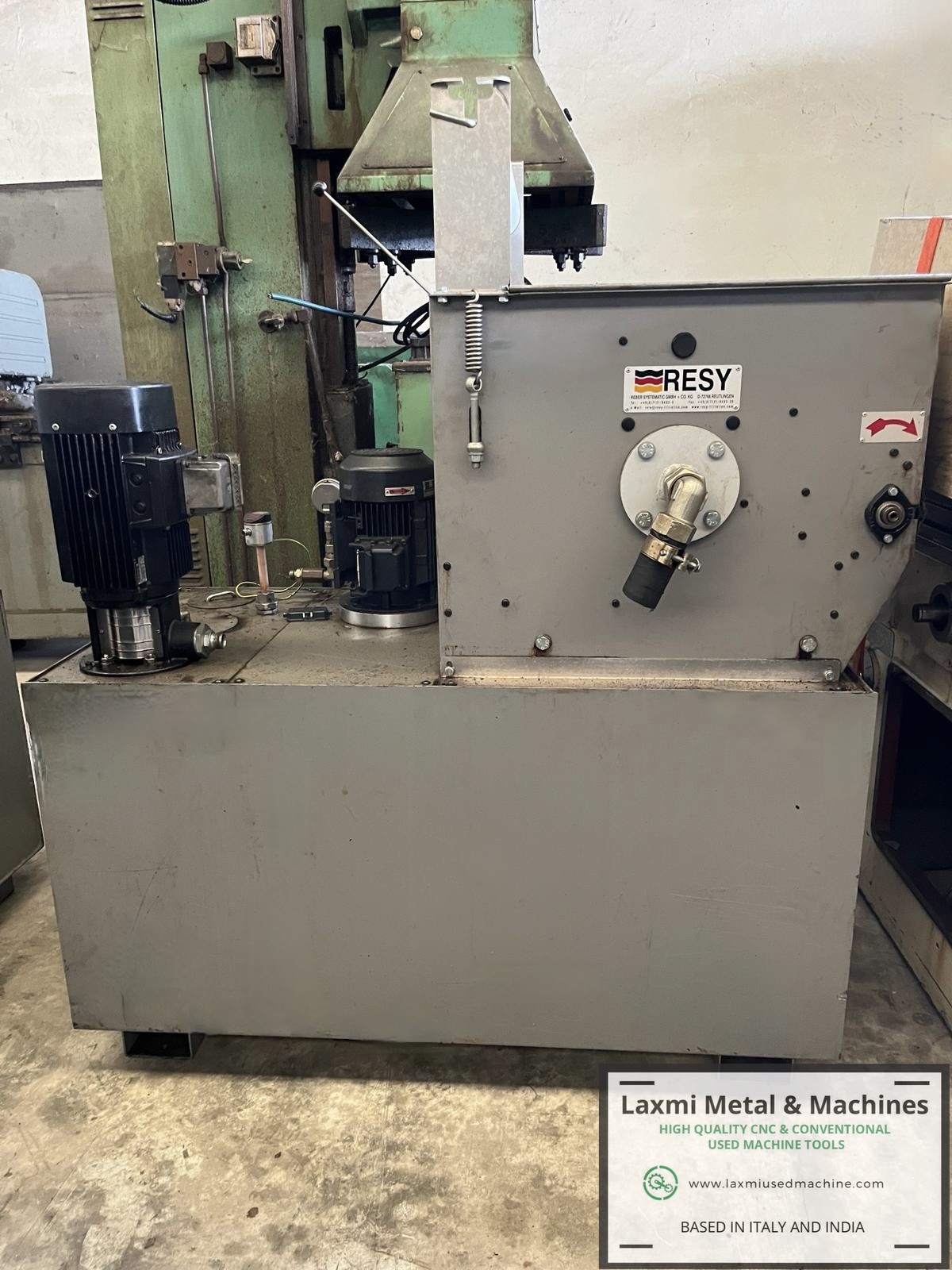

  • Coolant tank with high-pressure pump
  • Number of positions: 24 (12 x2)
  • Other info:
    The machine is in excellent condition and is complete in all its parts and accessories
