SOLD

CNC LATHE, GOODWAY – U.T.S. GT 25

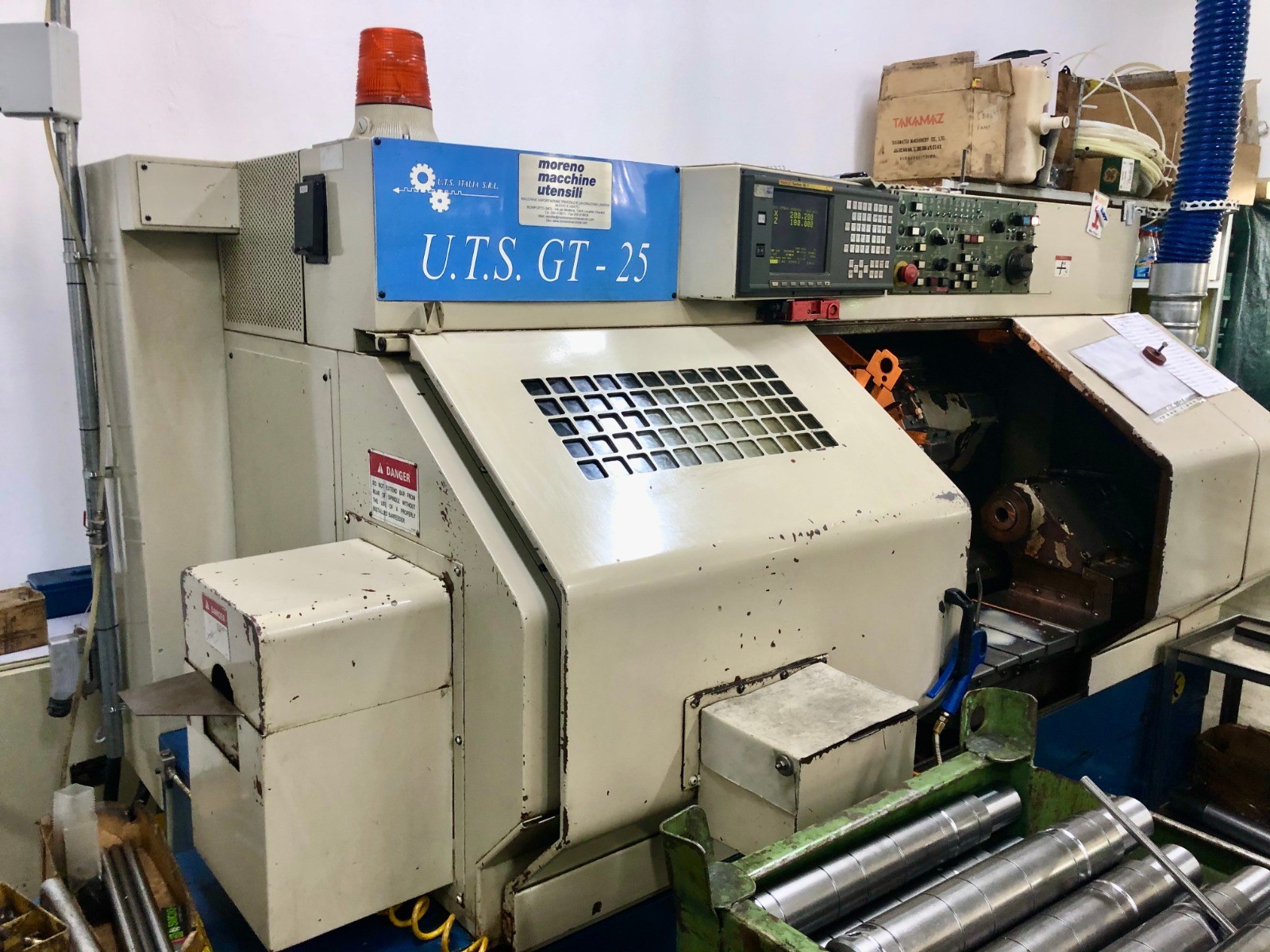

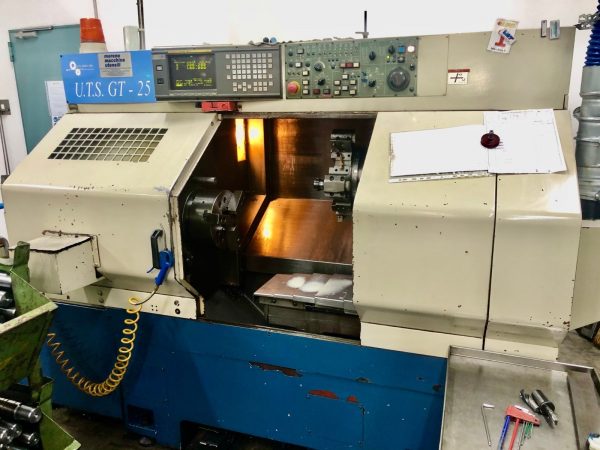

Here’s our CNC LATHE, GOODWAY –  U.T.S.   GT 25.

It is in excellent working condition, for any informations we are at your disposal.





  • CNC LATHE
  • Brand: GOODWAY
  • Model: UTS GT – 25.

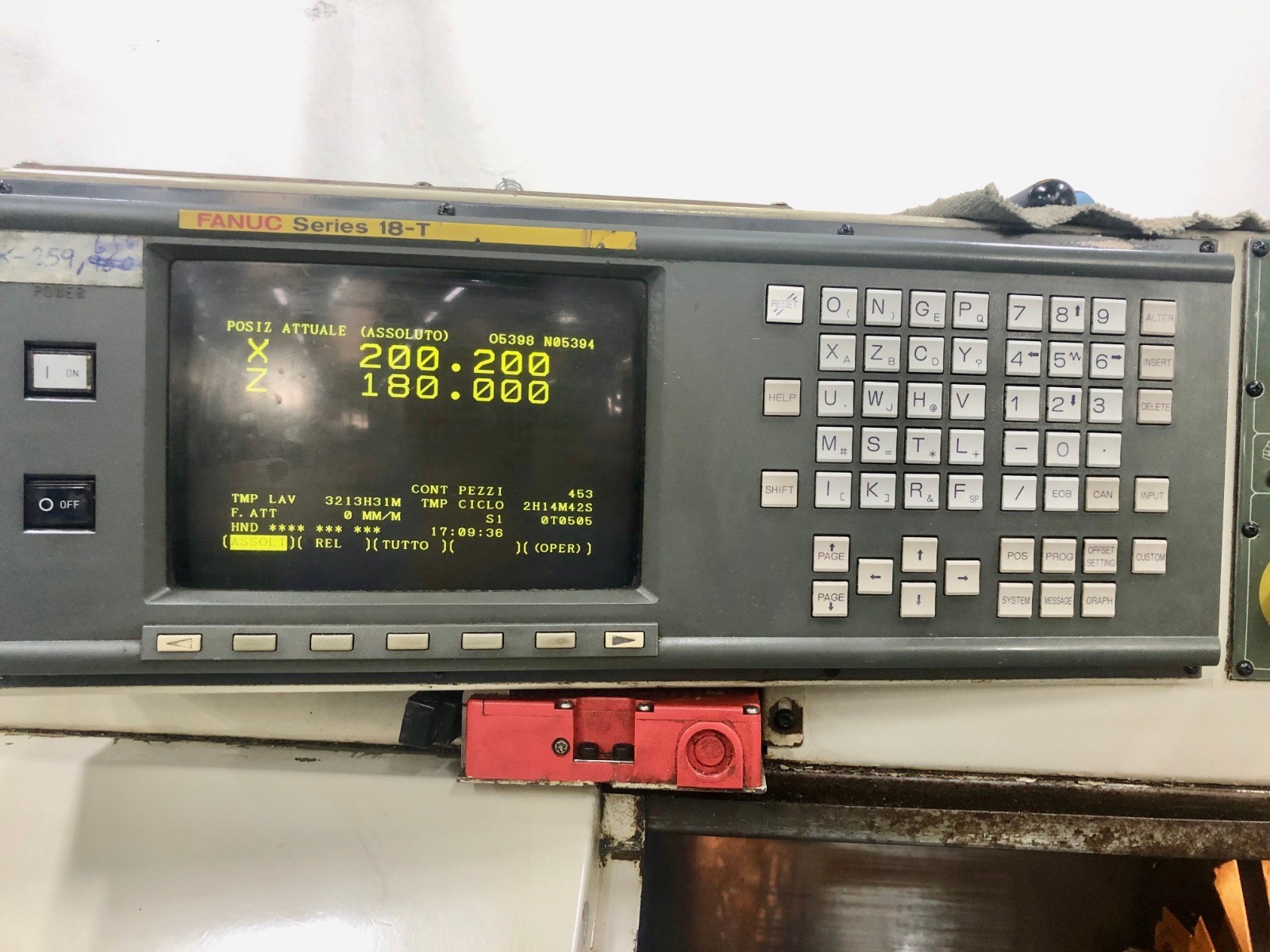

  • Control: FANUC 18ì-T.
  • MAX ROTATING DIAM. : 580 mm.
  • MAX TURNING DIAM. : 260 mm.
  • MAX TURNING LENGTH : 600 mm.
  • SPINDLE BORE : 65 MM.
  • auto-CENTERING DIAMETER: 210 MM.
  • SPINDLE SPEED: 3500 rpm.
  • SPINDLE NOSE : ASA 8.
  • SPINDLE MOTOR POWER (CONT / 30 MIN): 15-18.5 kw.

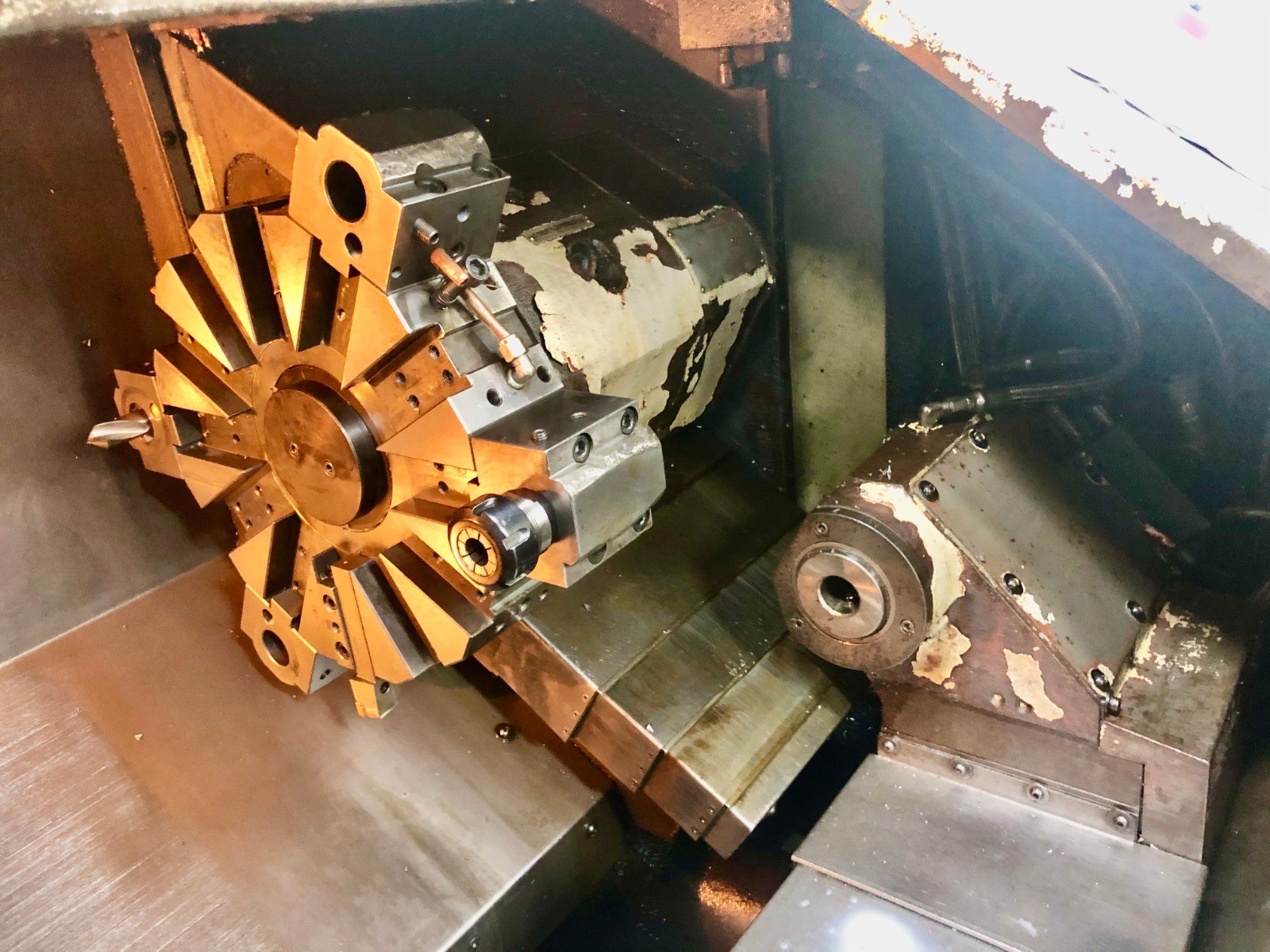

  • TURRET TOOLS: N ° 10.
  • TAILSTOCK WITH PROGRAMMABLE BODY AND CYCLE TANK.
  • NEW DRIVE.
  • – SPINDLE GEOMETRIES ENTIRELY RENOVATED OF :                                                    TAILSTOCK – TURRET – SPINDLE.
