Description

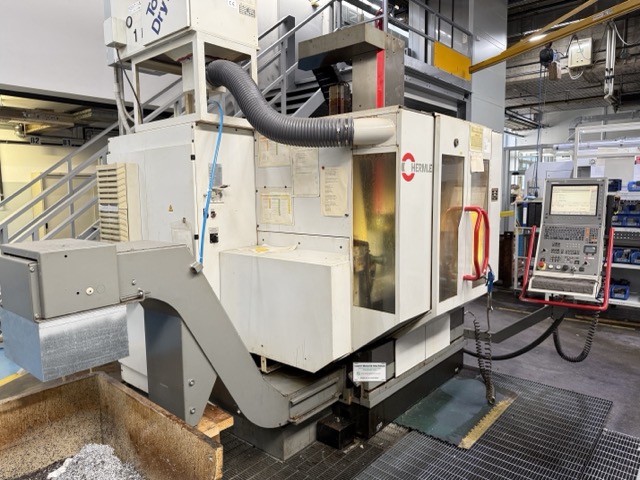

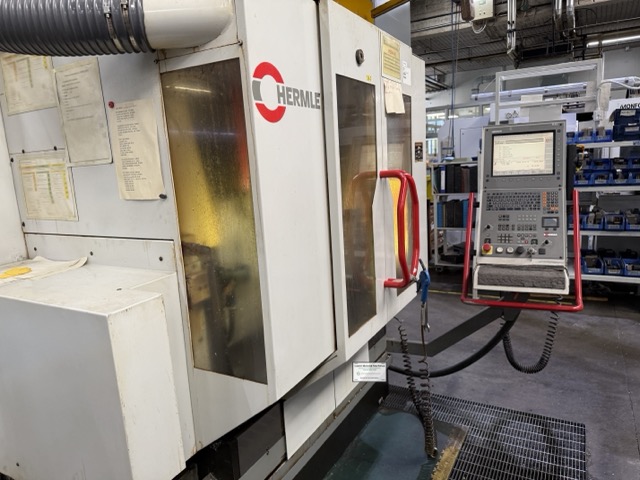

5 axis VERTICAL MACHINING CENTER
- Make: HERMLE
- Model: C600U

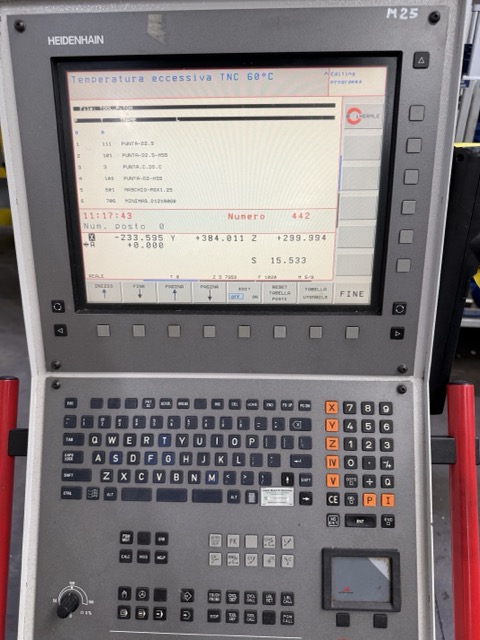

- CNC: HEIDENHAIN iTNC530
- Year of manufacturing : 2003 – installed in end 2004
Axis Travel:
- X (Longitudinal movement of column): 600 mm
- Y (Cross movement column): 450 mm
- Z (Vertical movement of spindle head): 400 mm
- A axis : 110° degrees

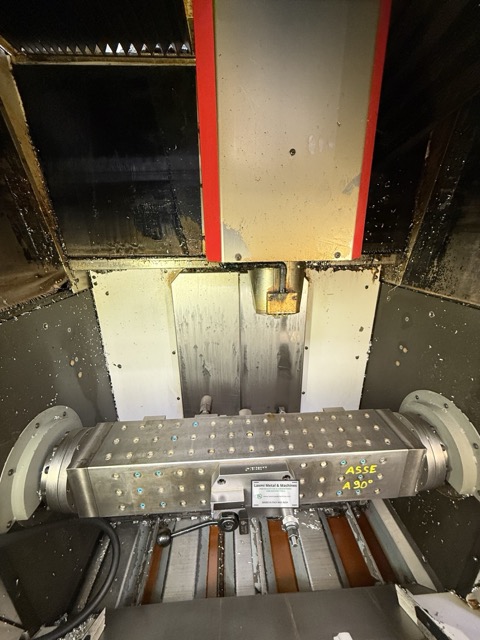

- B axis – rotary table (must be added) : 360° degrees
- Feed rate X/Y/Z Axis : 35000 mm/min
Table:
- Table size: 700×300 mm
- Table loading capacity: 200kg
Spindle:
- Max. Spindle speed: 18000 min^-1
- Type of spindle taper hole: HSK-63 ISO/Bt/Mk
- Tool storage capacity: 30
- Mass of machine: 7500 kg
Other info:
The machine has been checked and is in excellent working condition and is complete in all its standard parts and standard accessories.
