Description

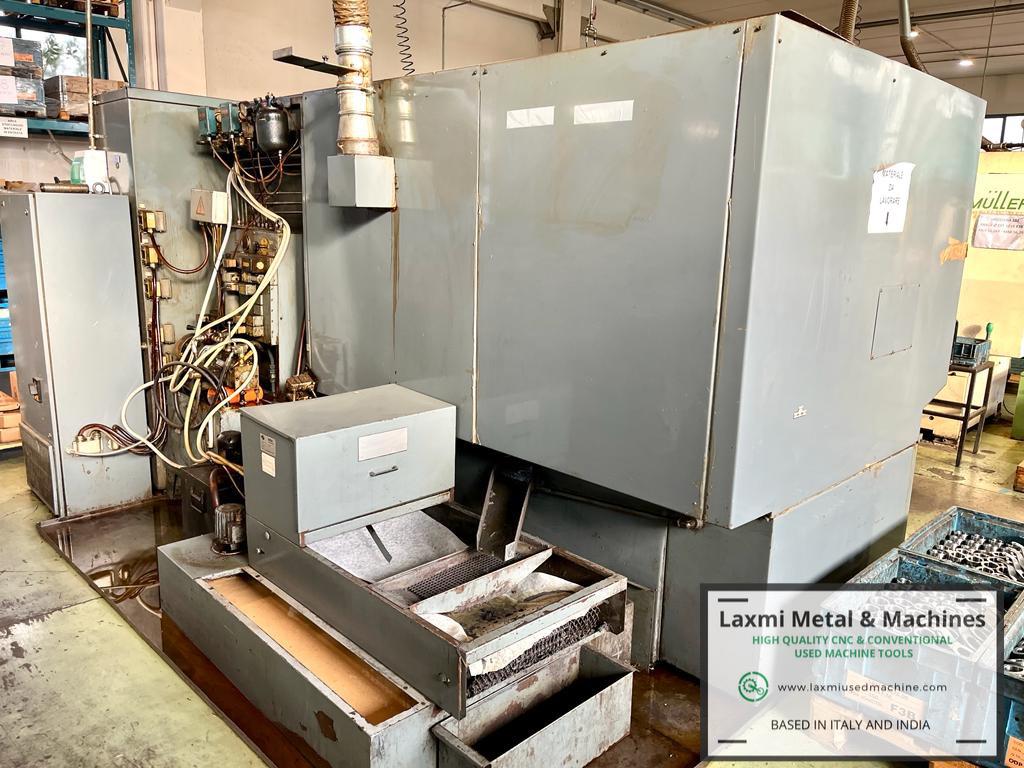

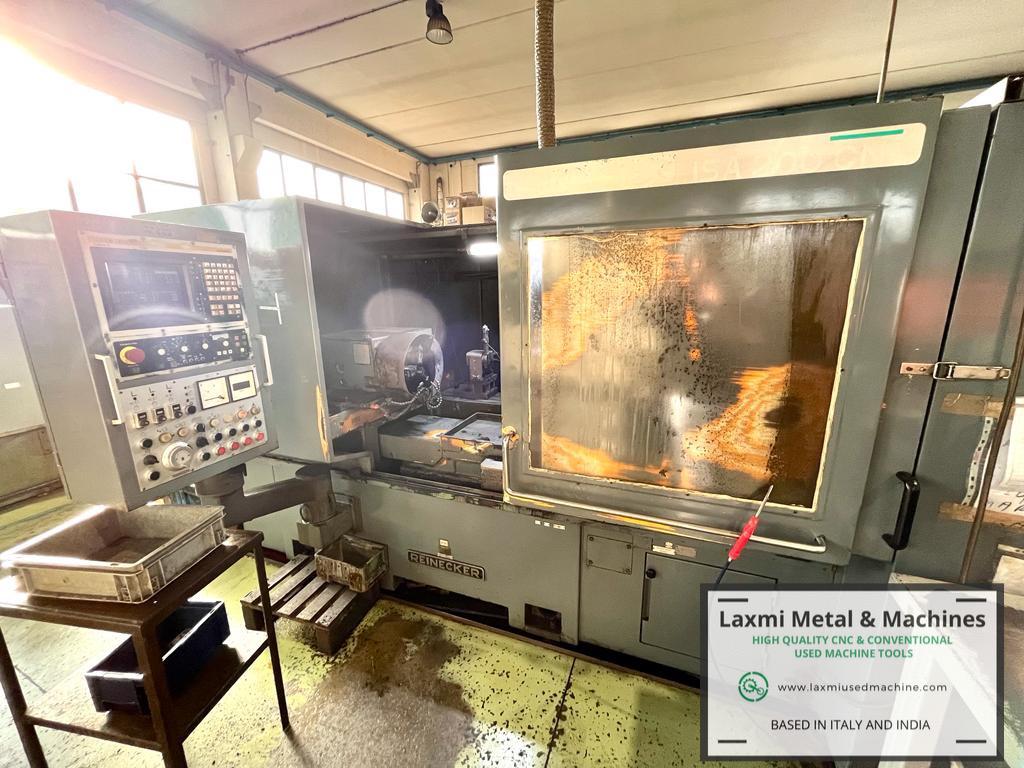

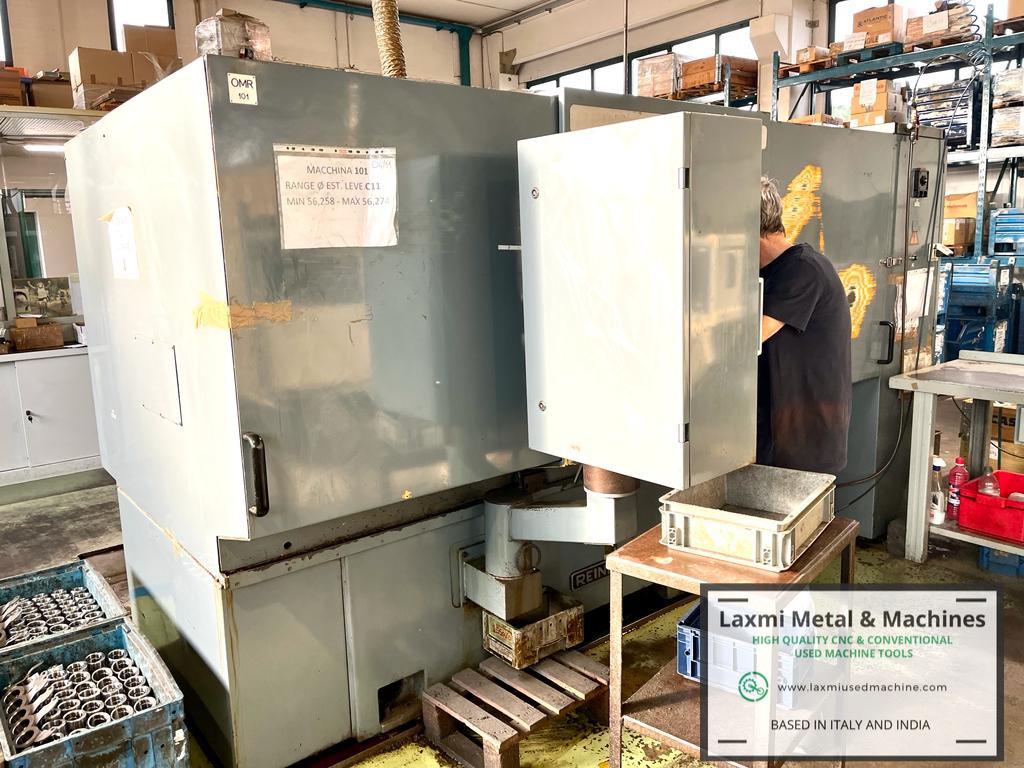

4-AXIS CNC INTERNAL GRINDING MACHINE
- Make: Reinecker
- Model: ISA 200 CNC
- CNC: Siemens Sinumerik System 3
- Min – Max grinding diameter: 10 – 250 mm
- Max grinding depth: 250 mm
- Center height: 305 mm
- X-axis Travel: 75 mm
- U-axis Tavel: 200 mm
- Z-axis Travel: 550 mm
- Spindle Taper: Morse 6
- Spindle Max Inclination: 15°
Other info:
The machine is in excellent condition and is complete in all its parts and accessories.
In particular, the machine is equipped with 3 spindles
(up to 75.000 rpm)
