La description

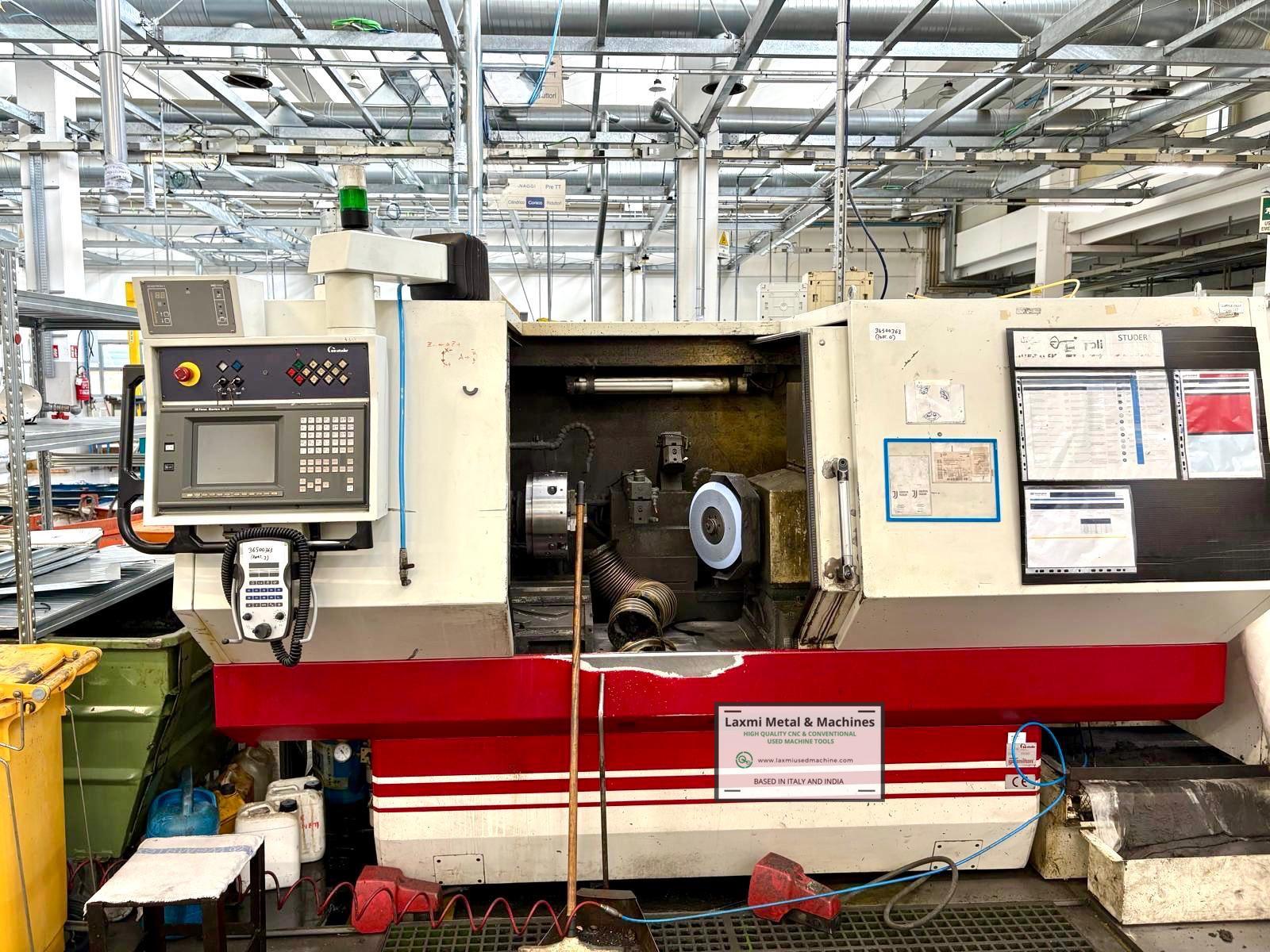

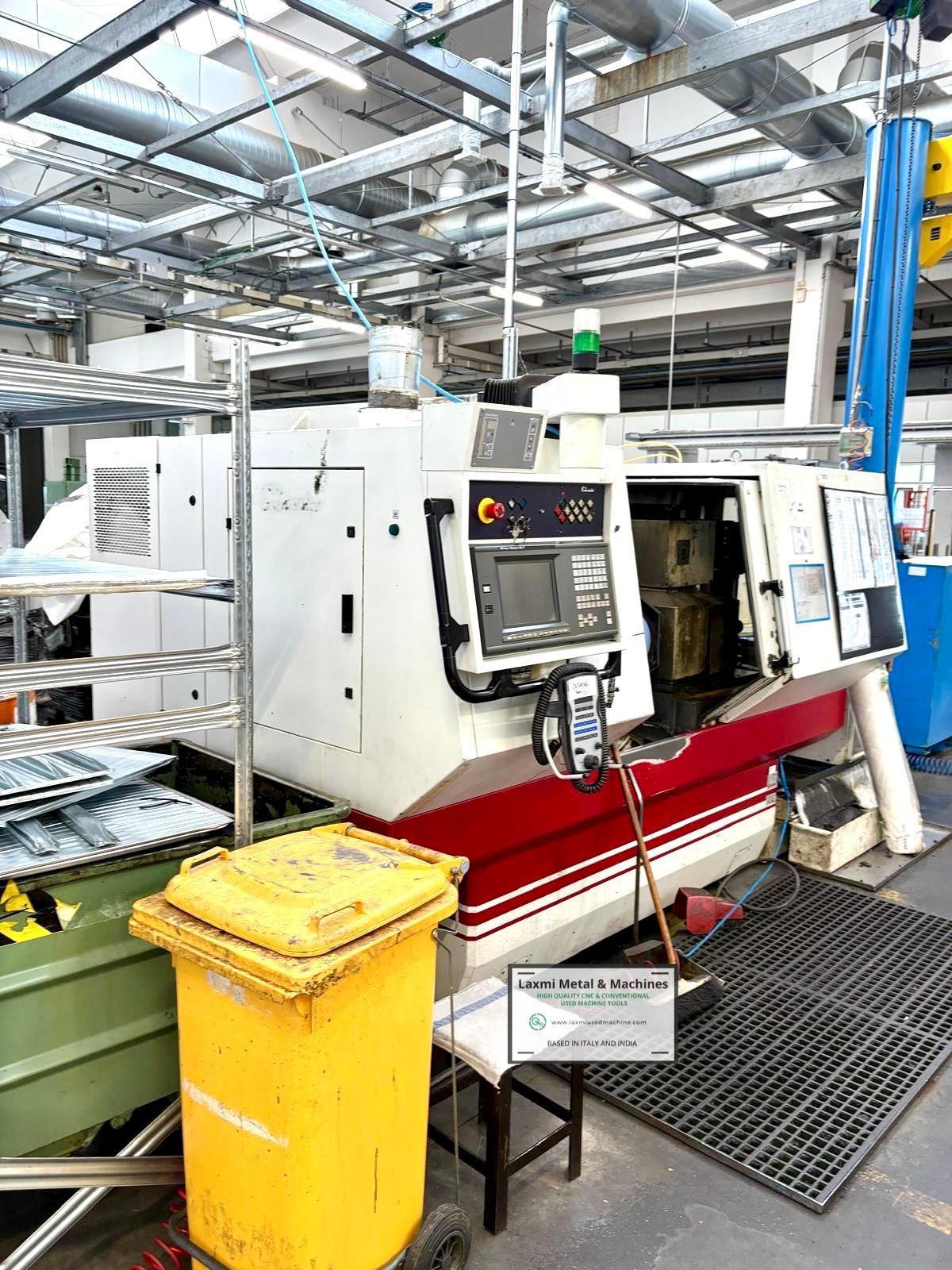

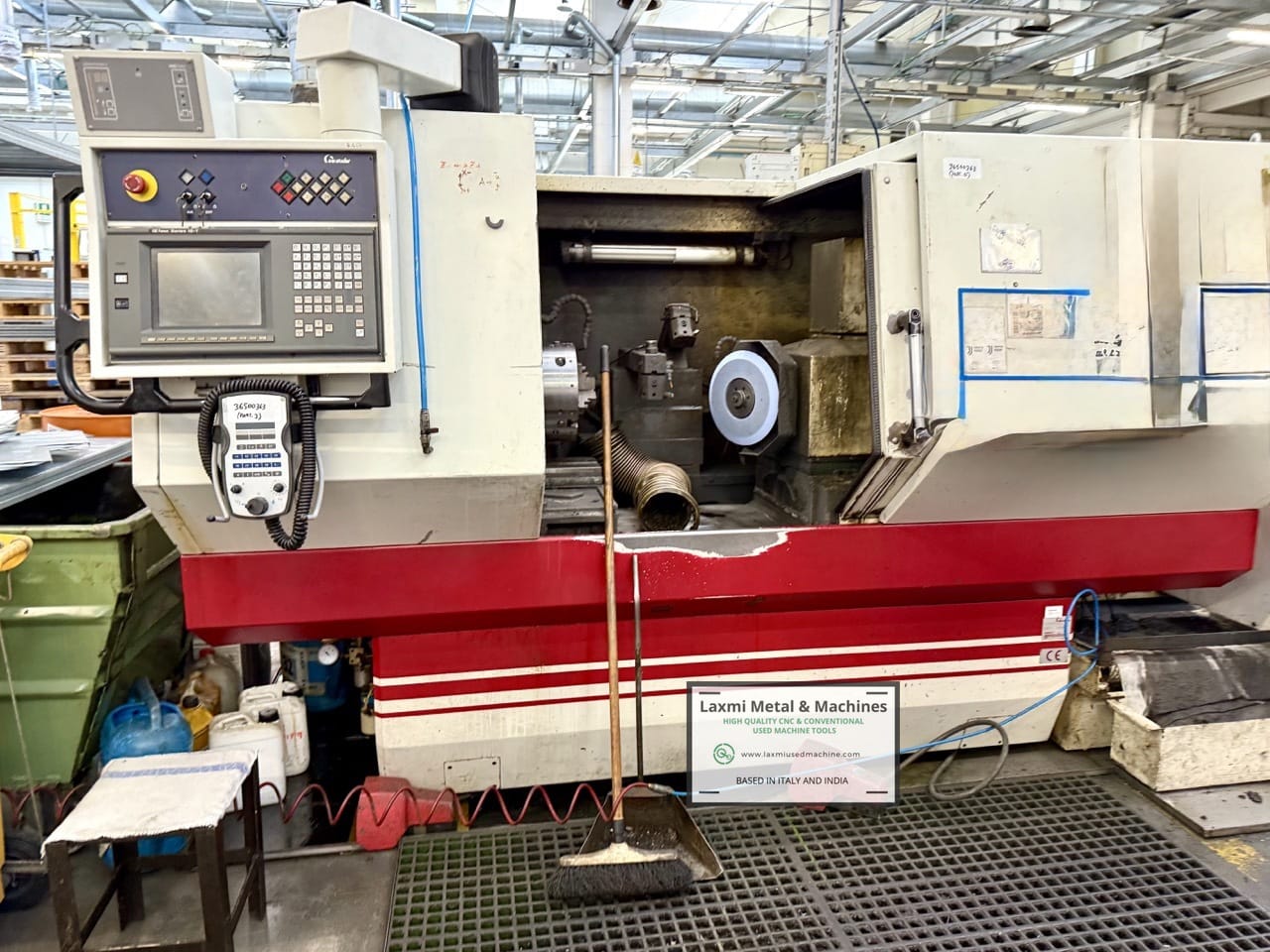

CNC UNIVERSAL GRINDER, STUDER – S145 CNC
Fabricant: Studer
Modèle: S145 CNC

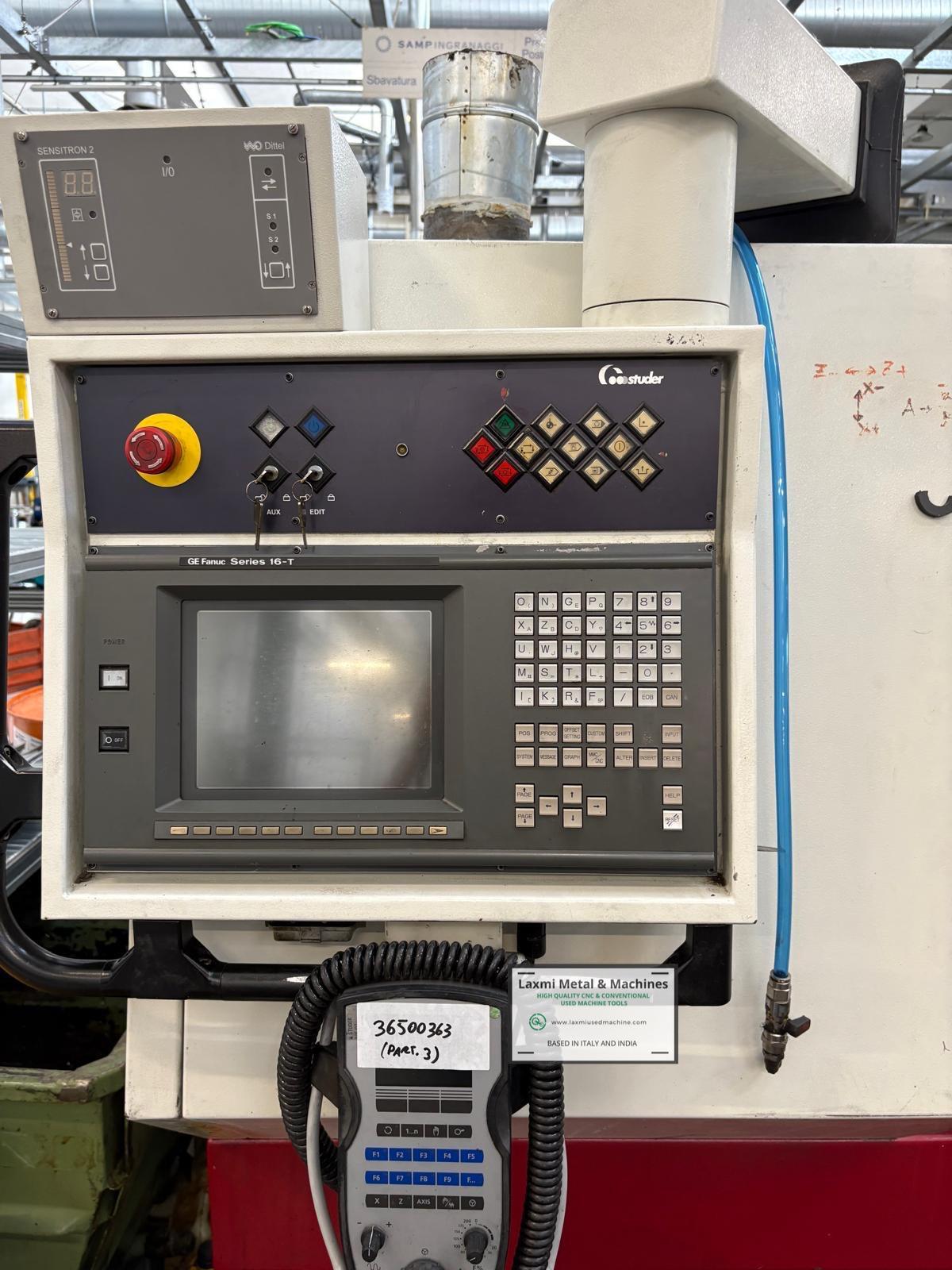

- GE FANUC Series 16-T CNC
- Swing rod diameter: Above the workpiece surface 350 mm
- In front of the worktable 455 mm
- Center height 175 mm
- Maximum workpiece length 530 mm
- Déplacement de l'axe :
- Longitudinal travel (Z-axis) 500 mm
- Transverse travel (X-axis) 120 mm
- Workpiece spindle (B-axis) +/-30°
- Feed rate: X-axis (transverse) 0.001-10,000 mm/min
- Z-axis (longitudinal) 0.001-10,000 mm/min
- C-axis (spindle, resolution) 0.0001°
- Grinding wheel head: Tilt 0-270°
- Number of spindle positions : 4
- Spindle speeds:
- Continuously variable from 5,000 rpm to 120,000 rpm
- Grinding wheel head workpiece:
- Spindle speed: continuously variable from 1 rpm to 1000 rpm
- Hammer speed 1 – 50 rpm
- Spindle bore Ø 50 mm
- Spindle taper connection: ISO 50
- Spindle connection: CAMLOCK 6
- Power supply 50 Hz 3x 400 Volt
- Workhead motor 3.8 kW
- Total installed power 22 kVA
- Machine weight approx. 5700 kg
- Various accessories: B-axis max. increments 0.001 °
- Dresser Electronic grinding detection
- Thread grinding cycles Coolant Paper filter
- Full protection cabin Lamp Status light
- Automatic centering 3 clamps Ø mm
- Electronic hand control RS 232 serial port interface

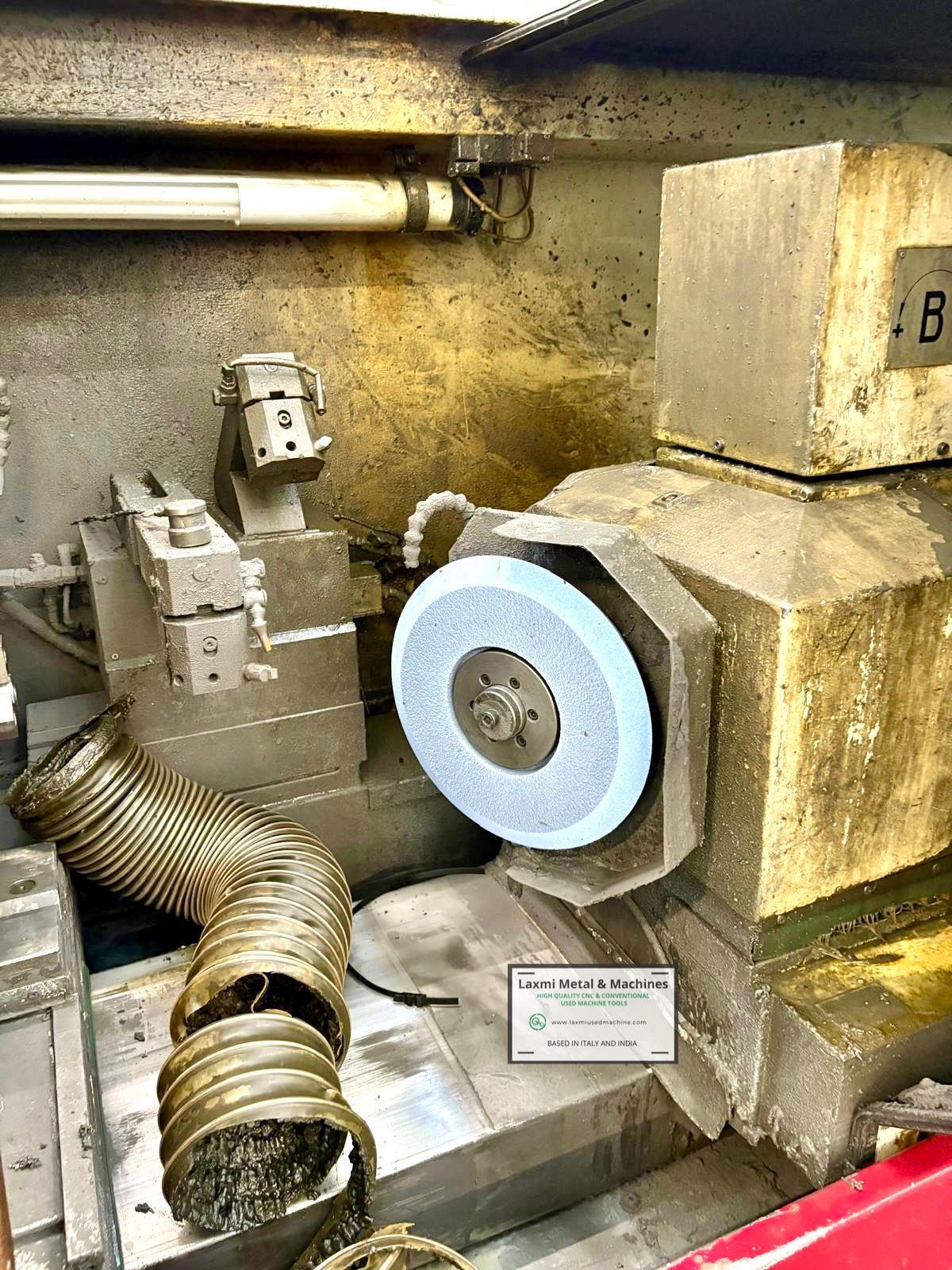

- External grinding spindle 1
Autre info:
LA MACHINE EST DANS D'EXCELLENTES CONDITIONS ET COMPLÈTE DANS TOUTES SES PIÈCES ET ACCESSOIRES.
