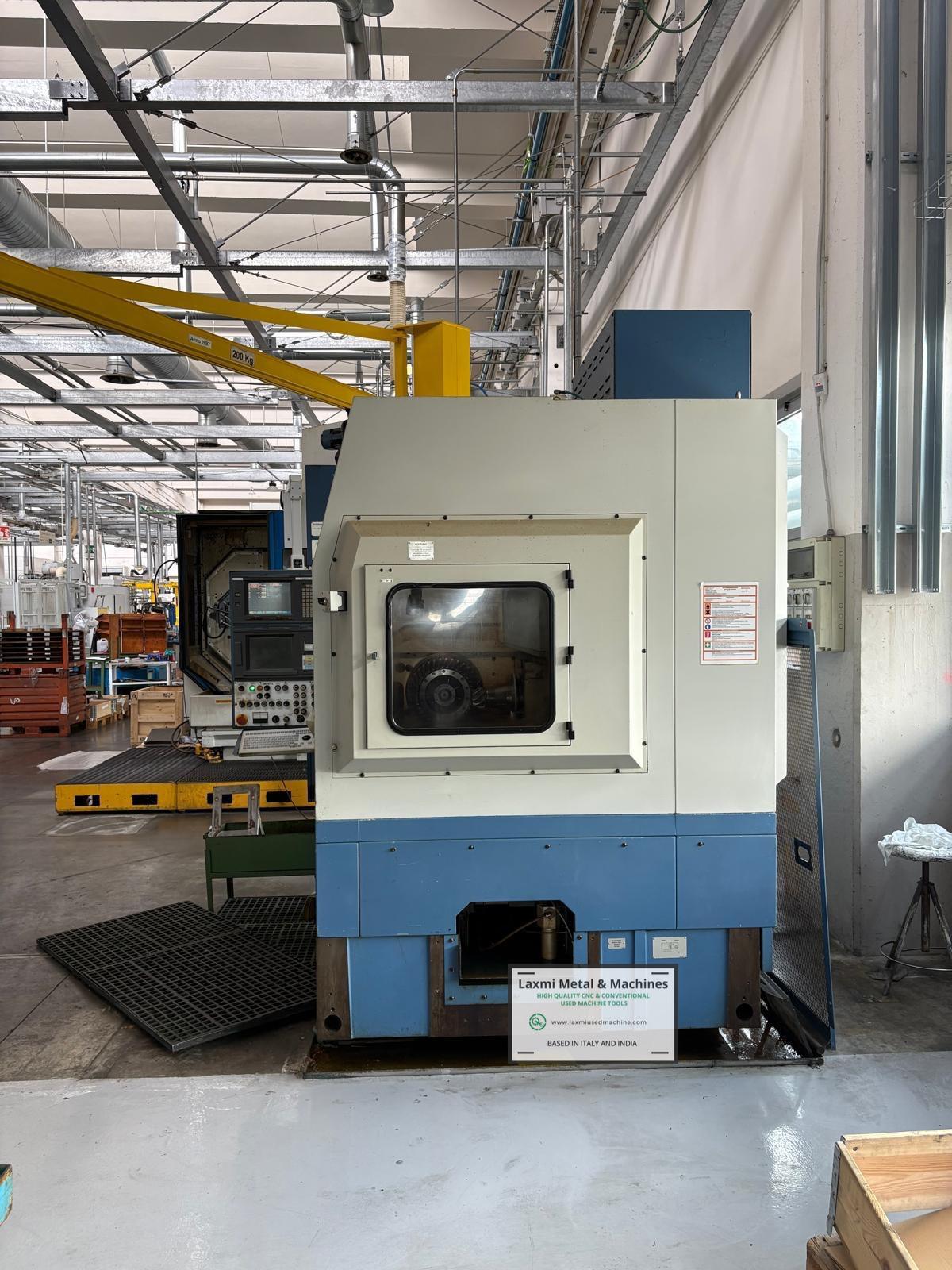

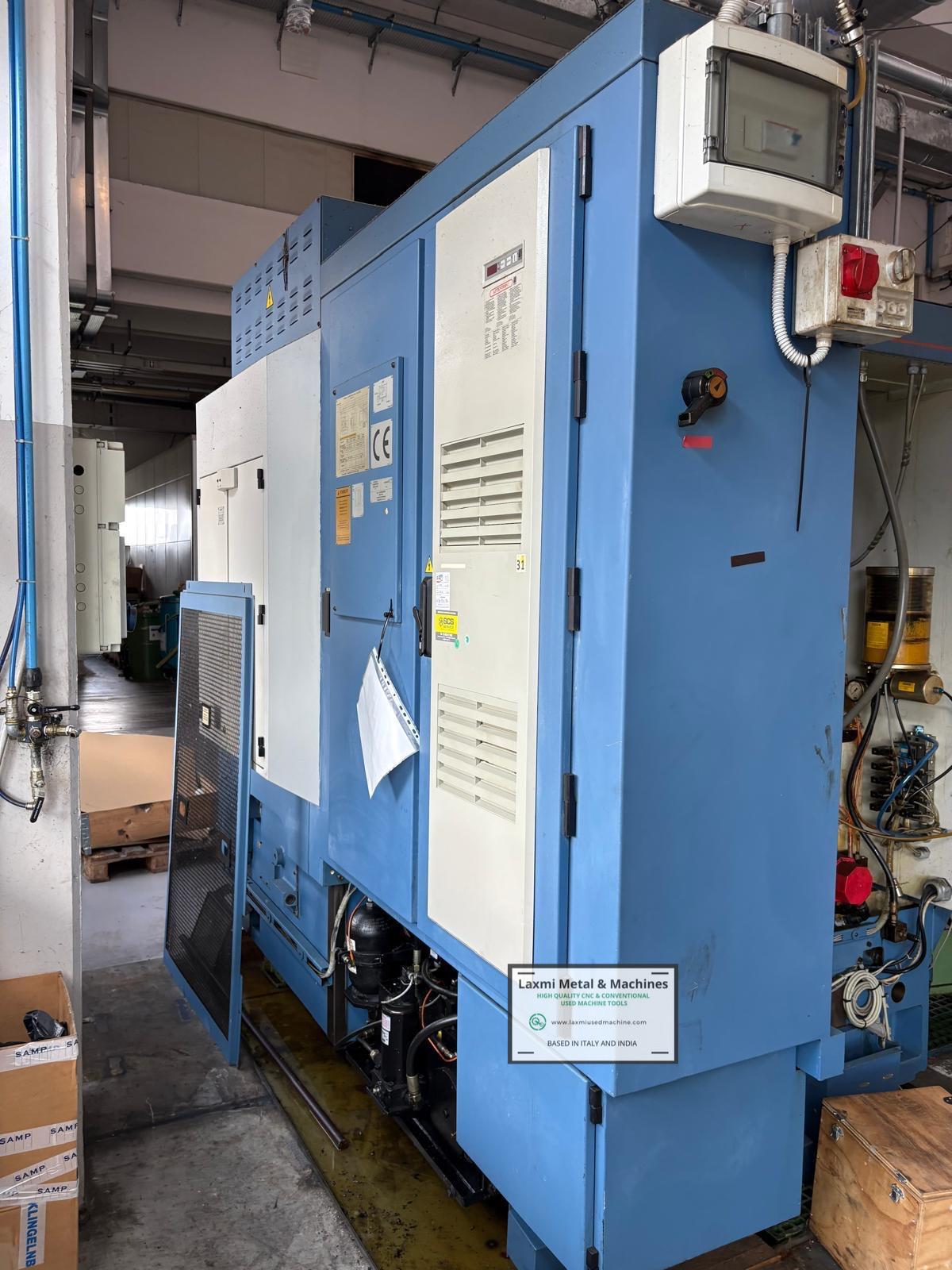

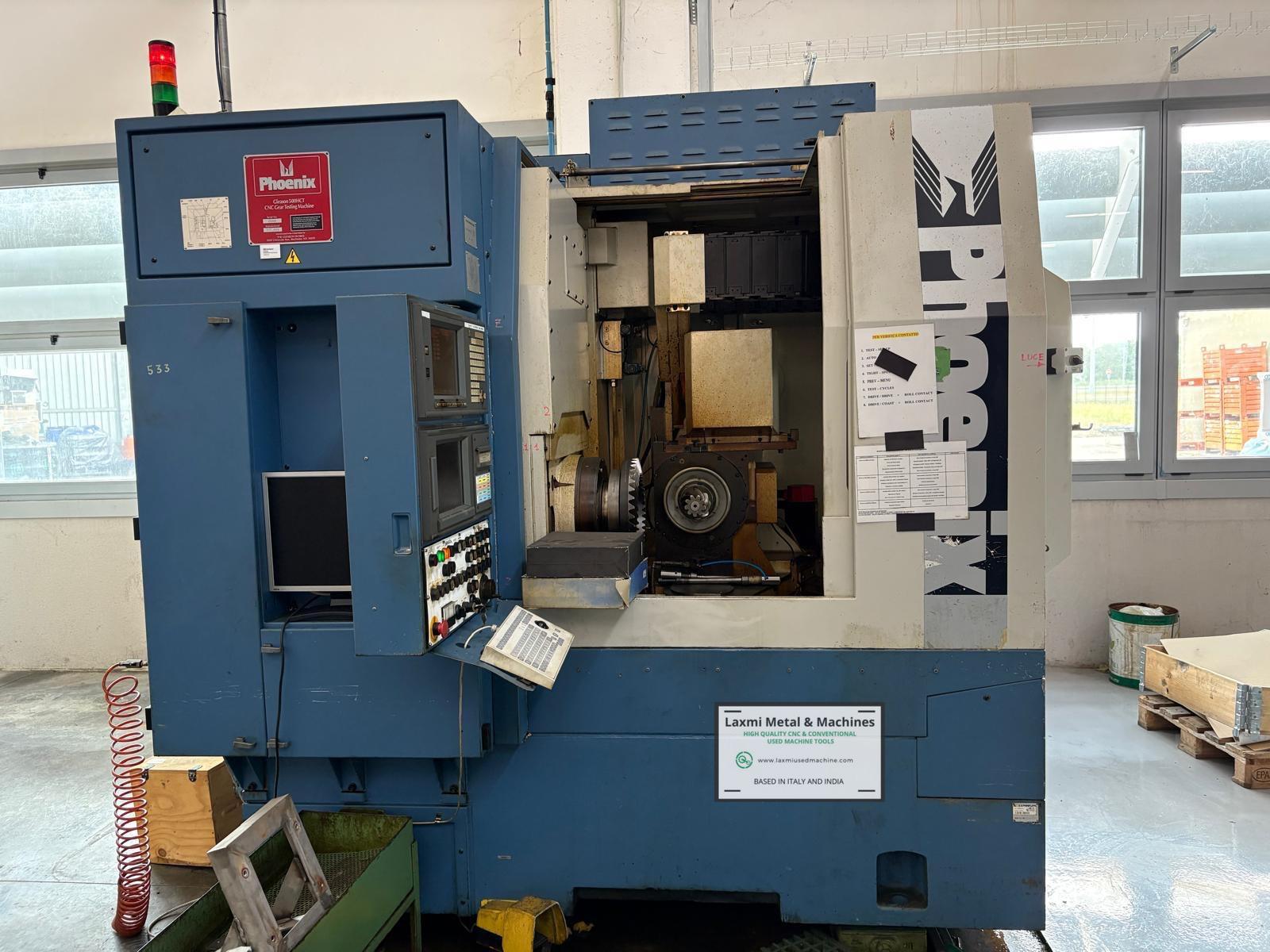

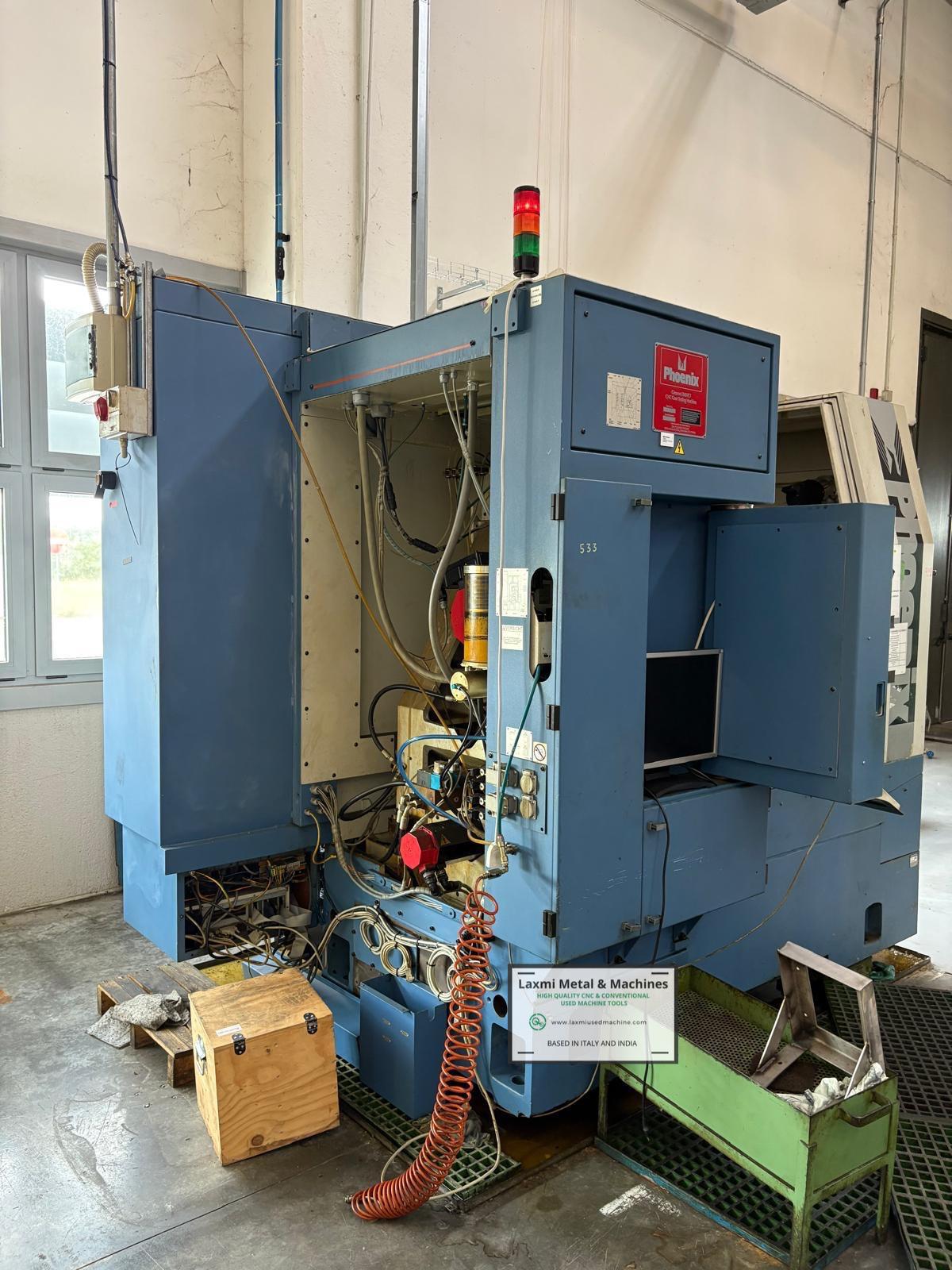

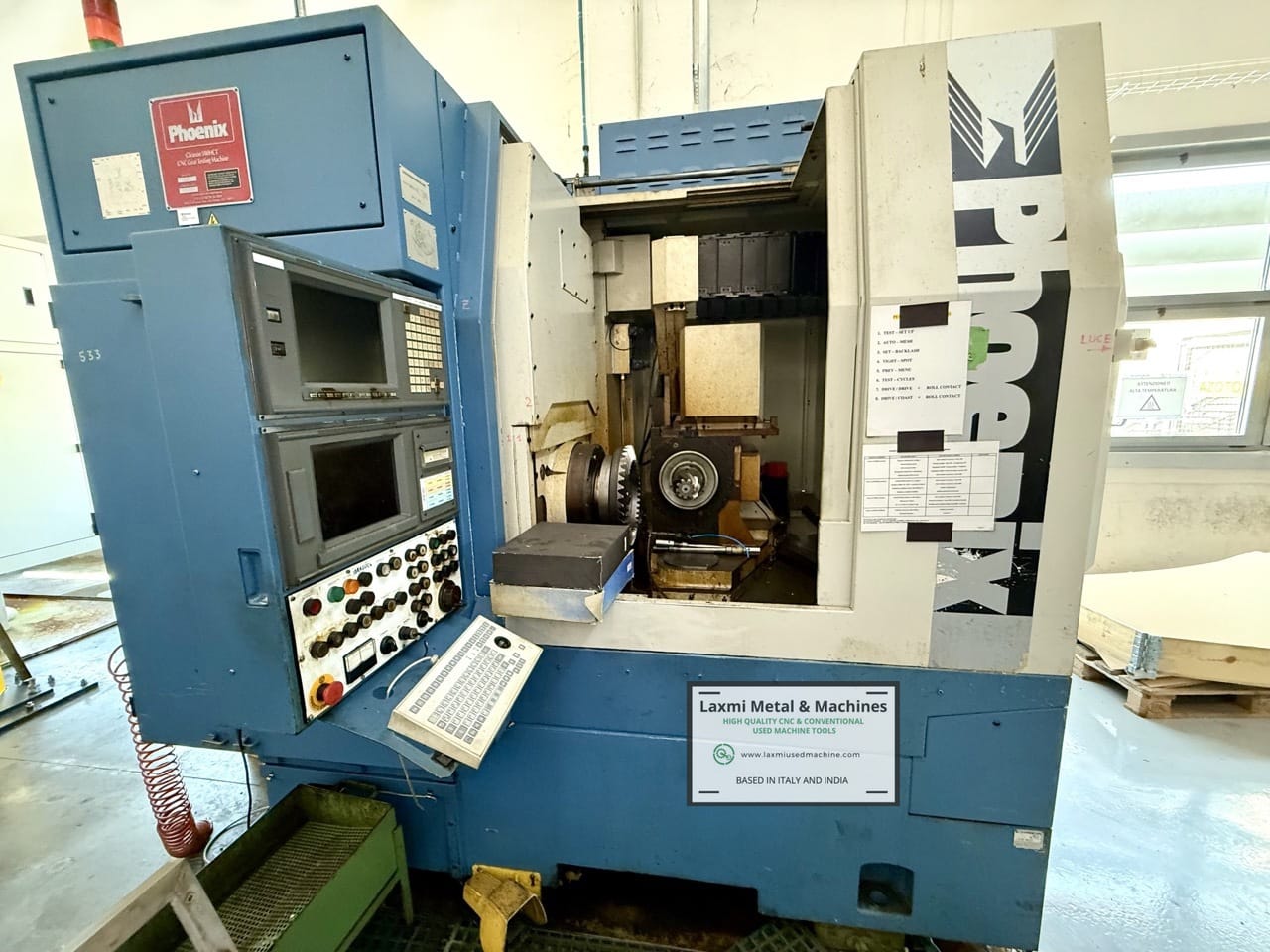

5 axis CNC HYPOID BEVEL GEAR TESTER – FLANK TO FLANK
- Make : GLEASON PHOENIX
- Model : 500 HCT
- YEAR OF MANUFACTURING : 10/1998
- CNC : FANUC
- Capacity – Bevel/Hypoid Gears
- Gear OD (max.) 508 mm
- Pinion OD (max.) 300 mm
- Pinion offset @ 500mm
gear OD
- above center 127 mm
- below center 51 mm
- Pinion offset @ 250mrn
gear OD
- above center 124 mm
- below center 127 mm
- Shaft angle (w/o reverse mounting of gear) 85° to 180°
(with reverse mounting of gear) 0° to 180° - Gear spindle nose to pinion ax.is (min.) 51 mm – (max.) 305 mm
- Pinion spindle nose to gear ax.is (min.) 394 mm – (max) 394 mm
Capacity – Cylindrical Gears - Center distance (min.) 25 mm – (max) 305 mm
- Distance between spindle faces @ b = 0° – (min) 165 mm – (max) 419 mmMACHINE AXES TRAVELS
- Maximum haft angle travel (B-Axis) 85° to 180°
- Maximum vertical travel (Y-Axis) -127 mm to 127 mm
- Maximum horizontal travel (X-Axis) 140 mm to 394 mm
- Sliding base travel (Z-Axis) 51 mm to 305 mm
- Machine center to work spindle face (fixed) 114 mmPINION SPINDLE
- Diameter of tapered hole at large end 3 29/64″ (#39 taper)
Taper per foot - Depth of taper 3″
- Chucking force 4500 to 6000 psi
- Spindle speed range – single flank testing (SFT) 15 to 2500 RPM
- Spindle speed range – roll testing & SBN 15 to 3000 RPMSPECIFICATIONS (Cont’d)
GEAR SPINDLE - Diameter of tapered bole at large end 3 29/64″ (#39 taper)
- Taper per foot 39/64″
- Depth of taper 3″
- Chucking force 4500 to 6000 psi
- Spindle speed range – roll testing & SBN 15 to 1500 RPM
- Spindle speed range – single flank testing (SFI) 15 to 1250 RPM
- Brake Load – conventional testing 69 Nm
- high torque testing 100 Nm
- Machine Weight (approx.) 8200 kg
- Electrical Load 16,7 KW (Peak value)
- Compressed Air 17m3/hr. (est), 4.9 Bars
LA MACHINE EST DANS D'EXCELLENTES CONDITIONS ET COMPLÈTE DANS TOUTES SES PIÈCES ET ACCESSOIRES
