Descripción

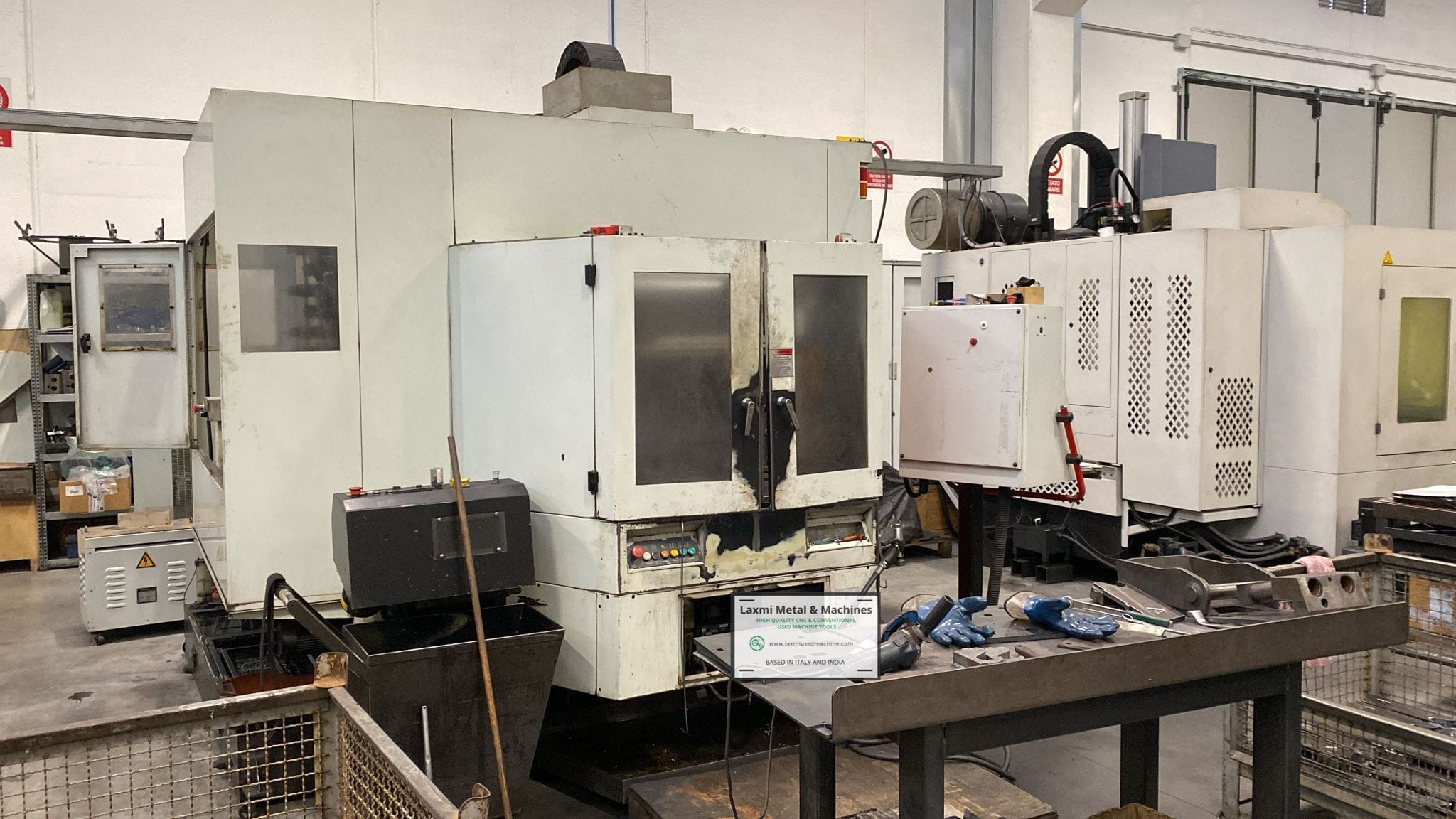

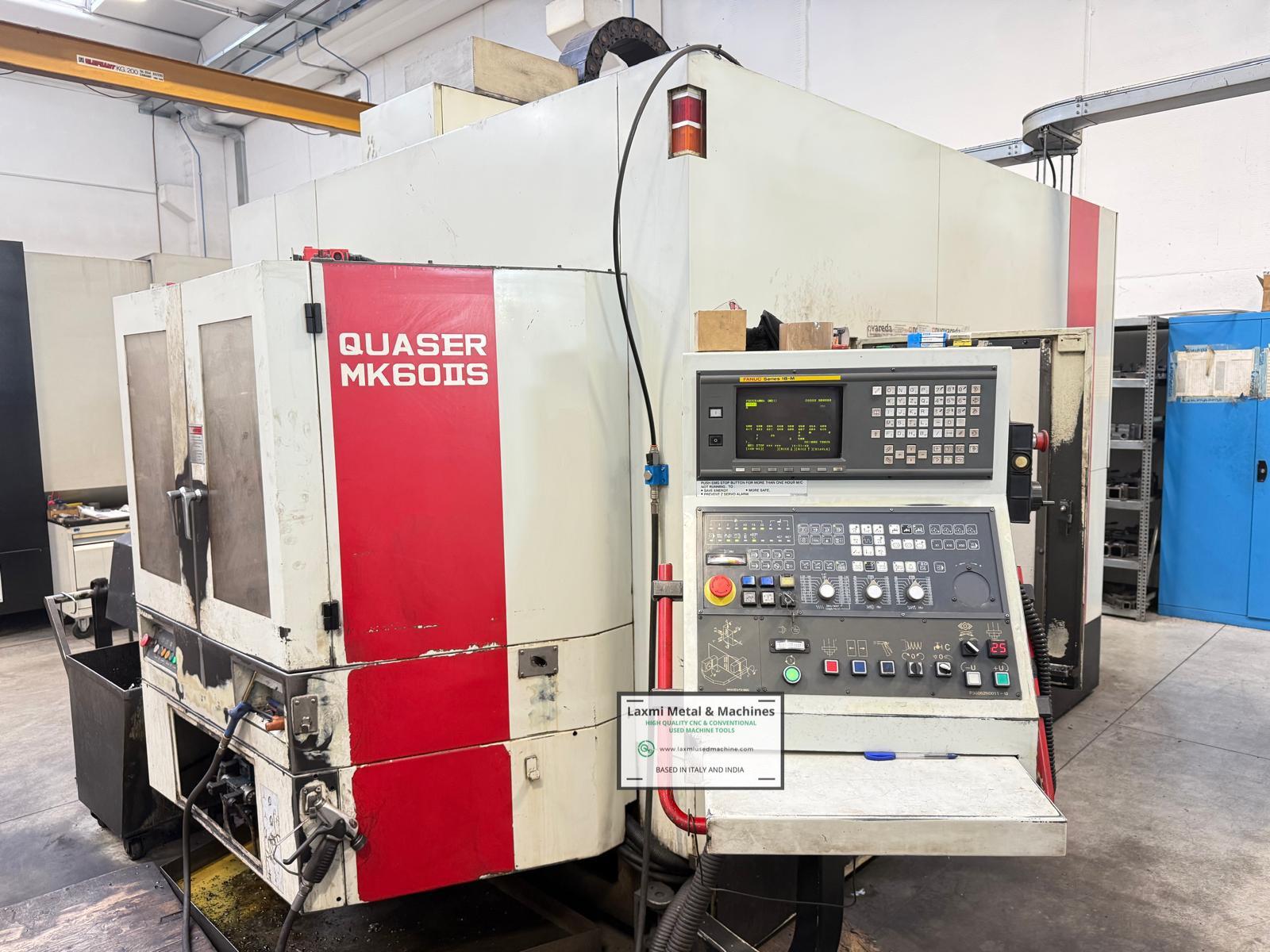

DOUBLE PALLET VERTICAL MACHINING CENTER
- Hacer: QUASER
- Modelo: MK60IIS

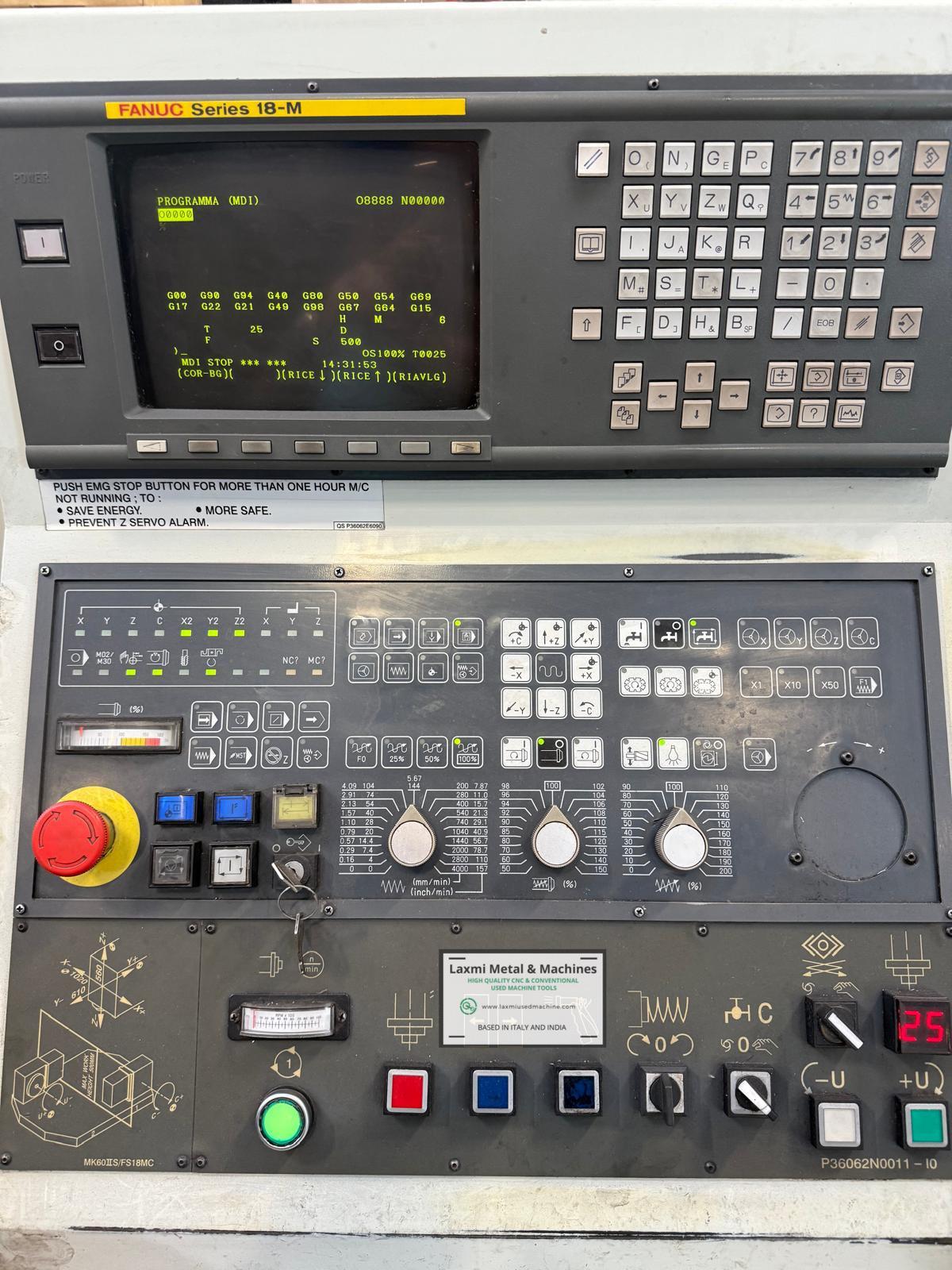

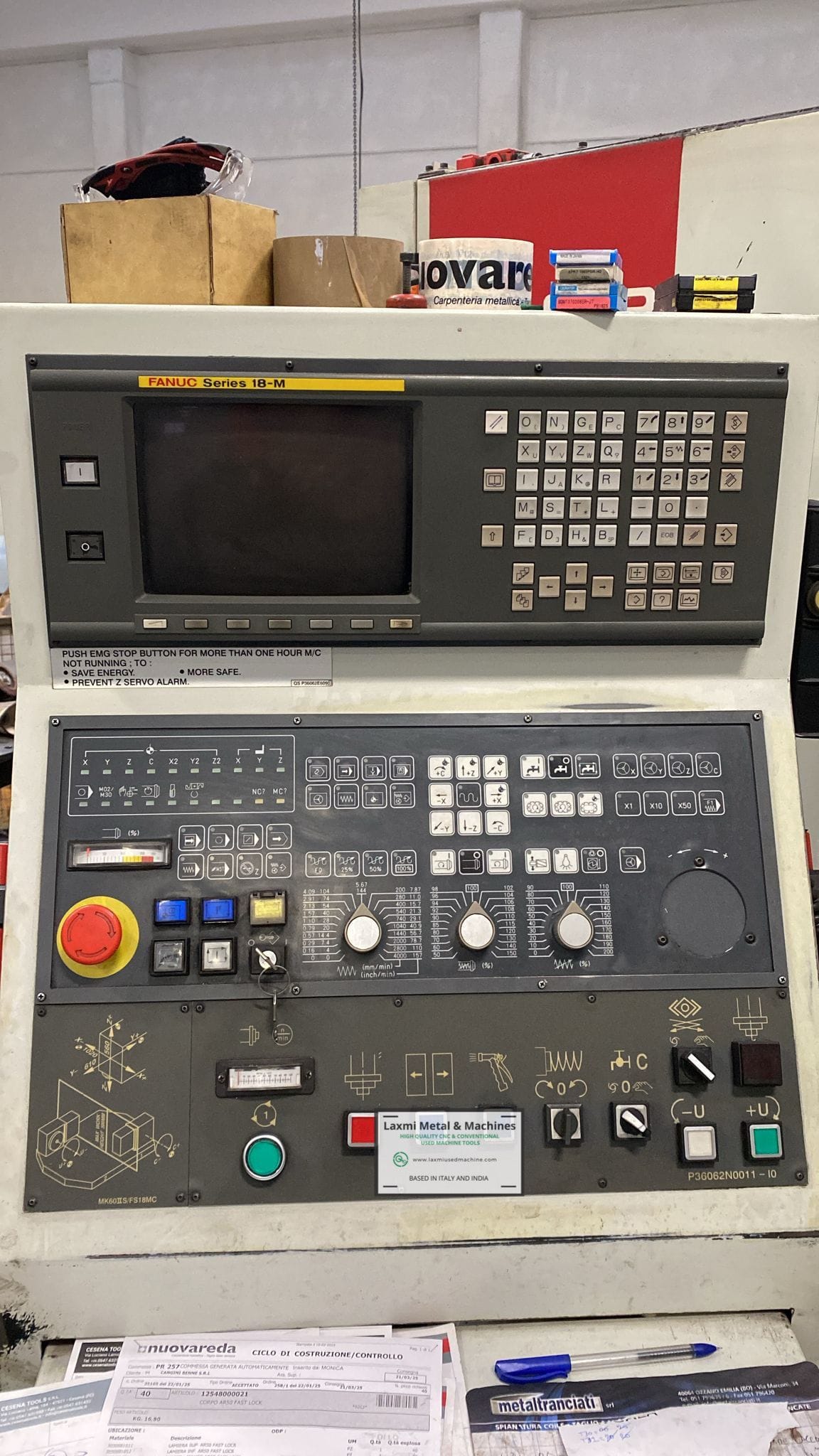

- CNC: Fanuc series 18MC
Axis Travel:
- X (Longitudinal movement of column): 1020 mm
- Y (Cross movement column): 610mm
- Z (Vertical movement of spindle head): 560 mm
Mesa:
- Tamaño de la mesa:1050×550 x2
- Table loading capacity: 300kg x2
Huso:
- máx. Eje de velocidad: 10000 min^-1
- Type of spindle taper hole: ISO 40/BT40

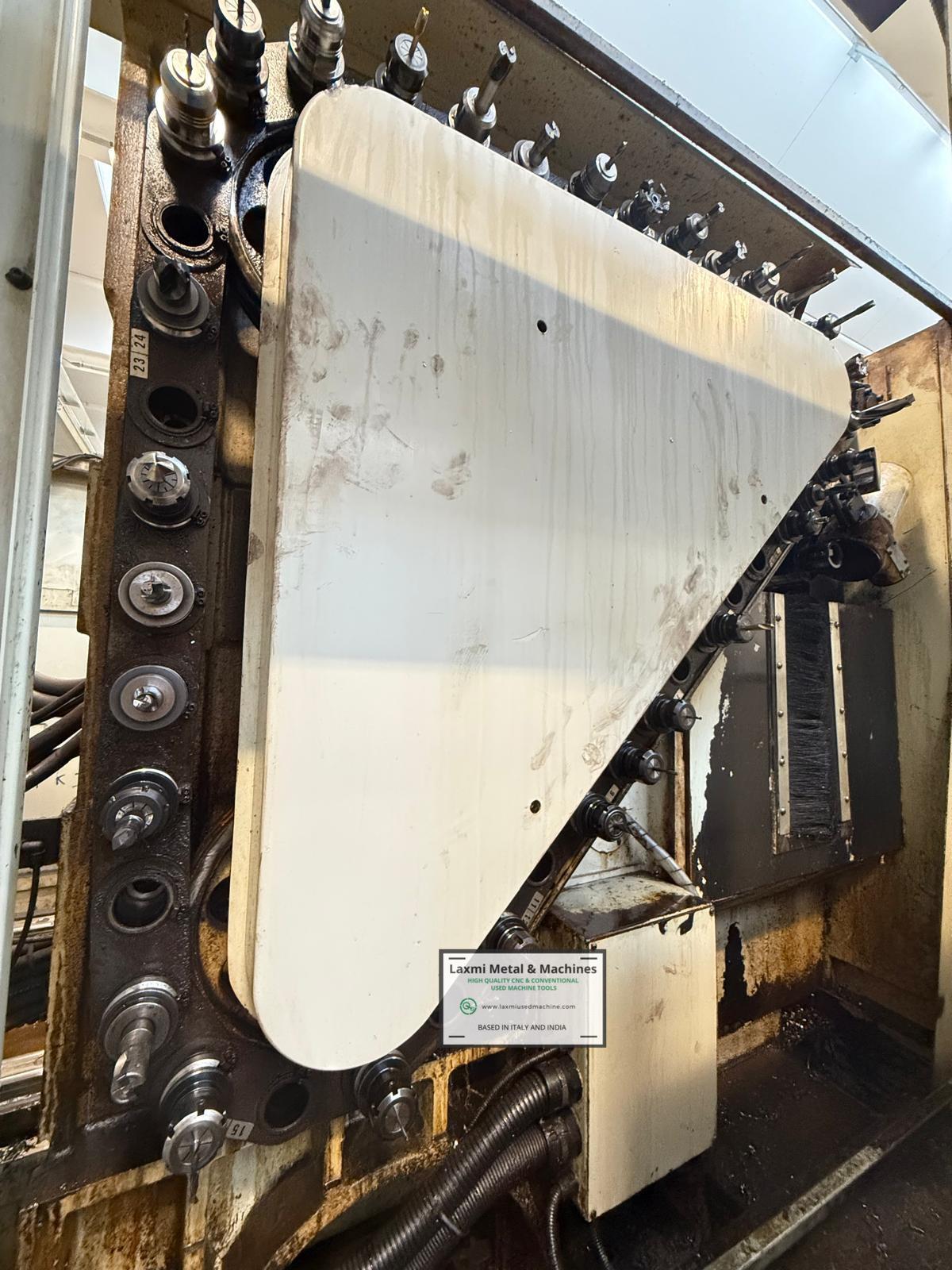

- Tool storage capacity: 40 [80]
Tamaño de la máquina:
- Machine height: 3080 mm
- Floor space (with chip conveyor & 20 bar tank): 2660 x 4380 mm
- Mass of machine: 11500 kg
Otras informaciones:
The machine has been checked and is in excellent working condition and is complete in all its parts and accessories.

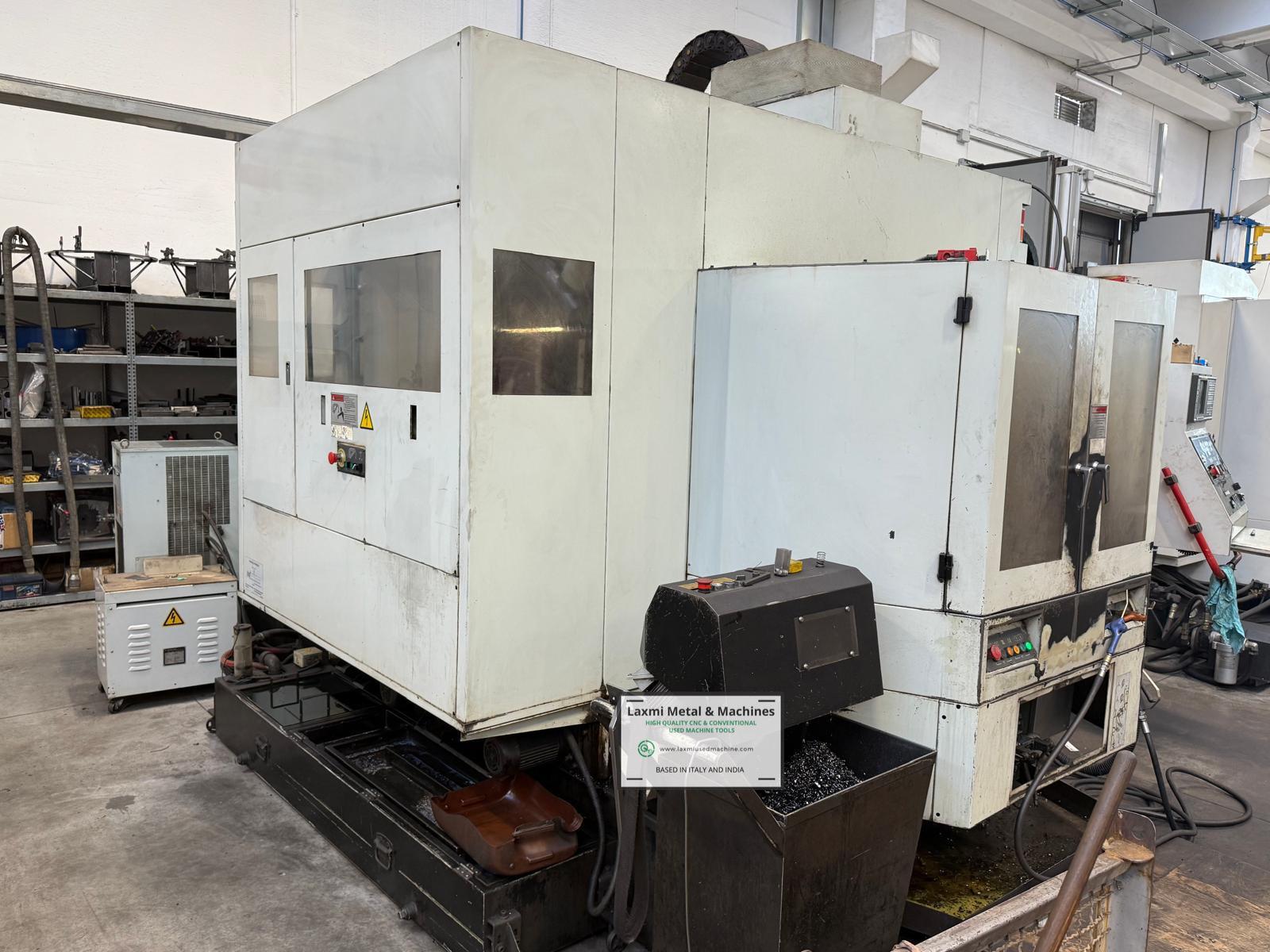

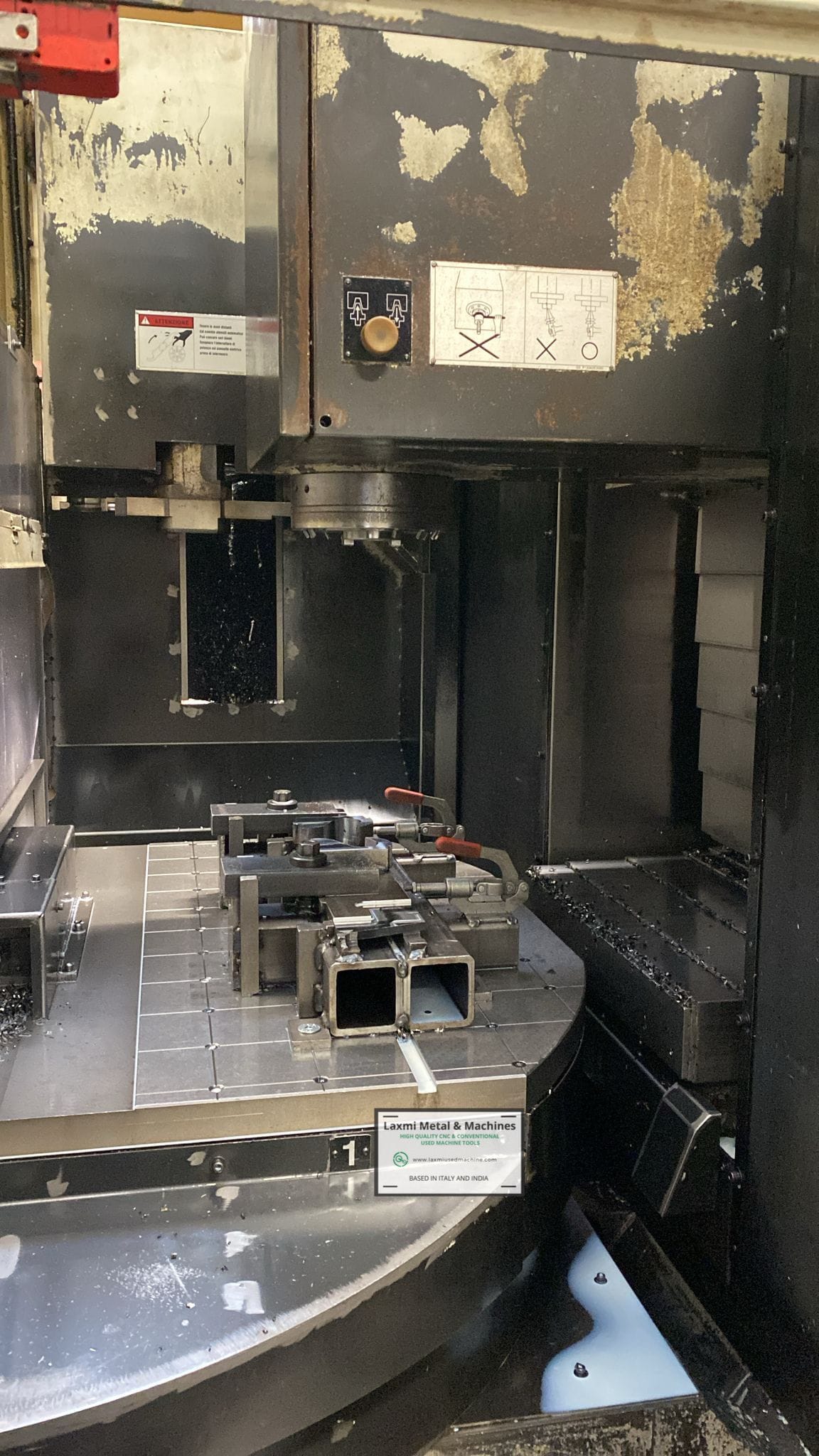

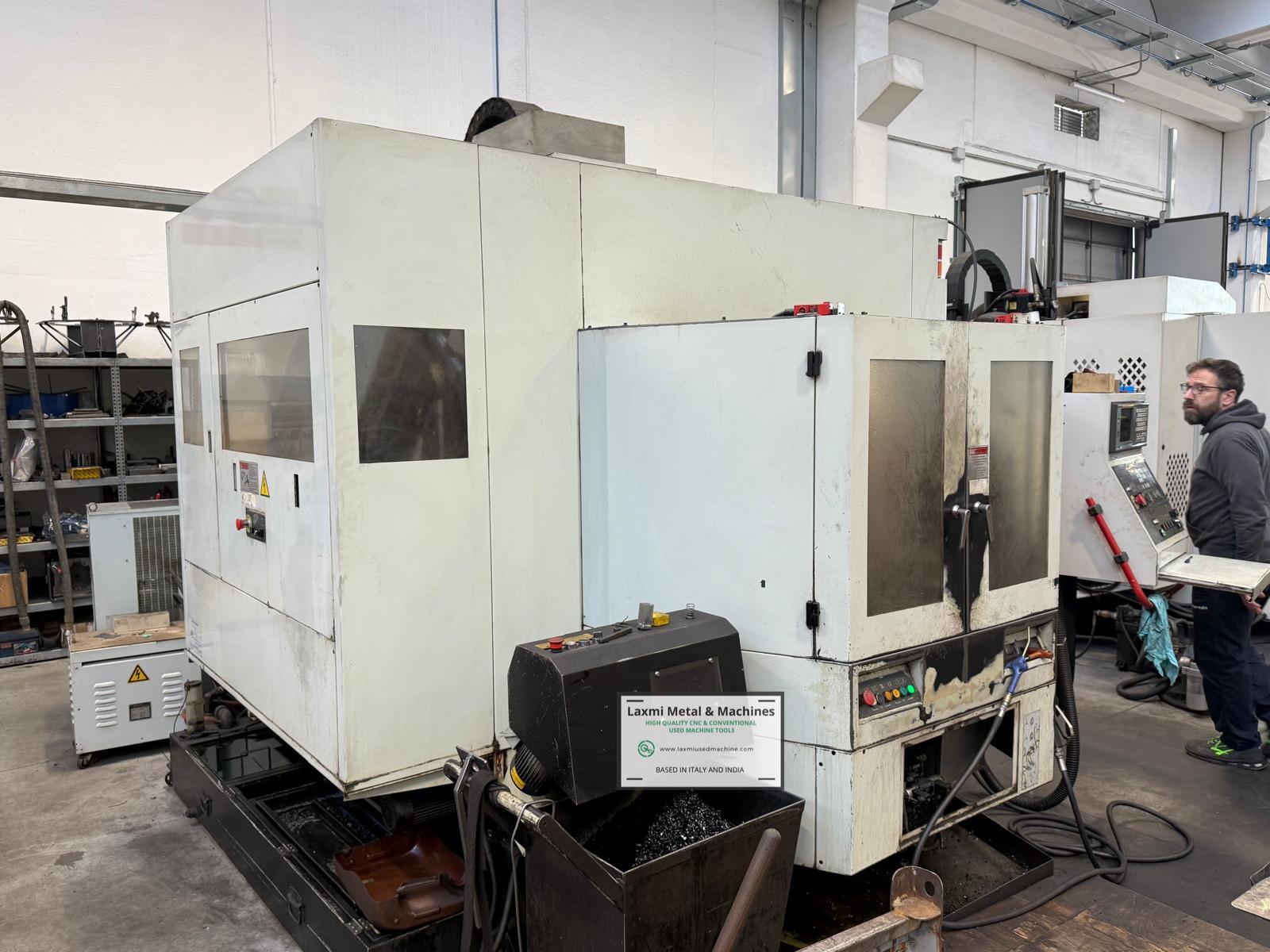

Equipped with double pallet and chip conveyor.
