Beschreibung
VERTIKALE BEARBEITUNGSZENTRUM
- Machen: QUASER
- Modell: Mv 204II / 10

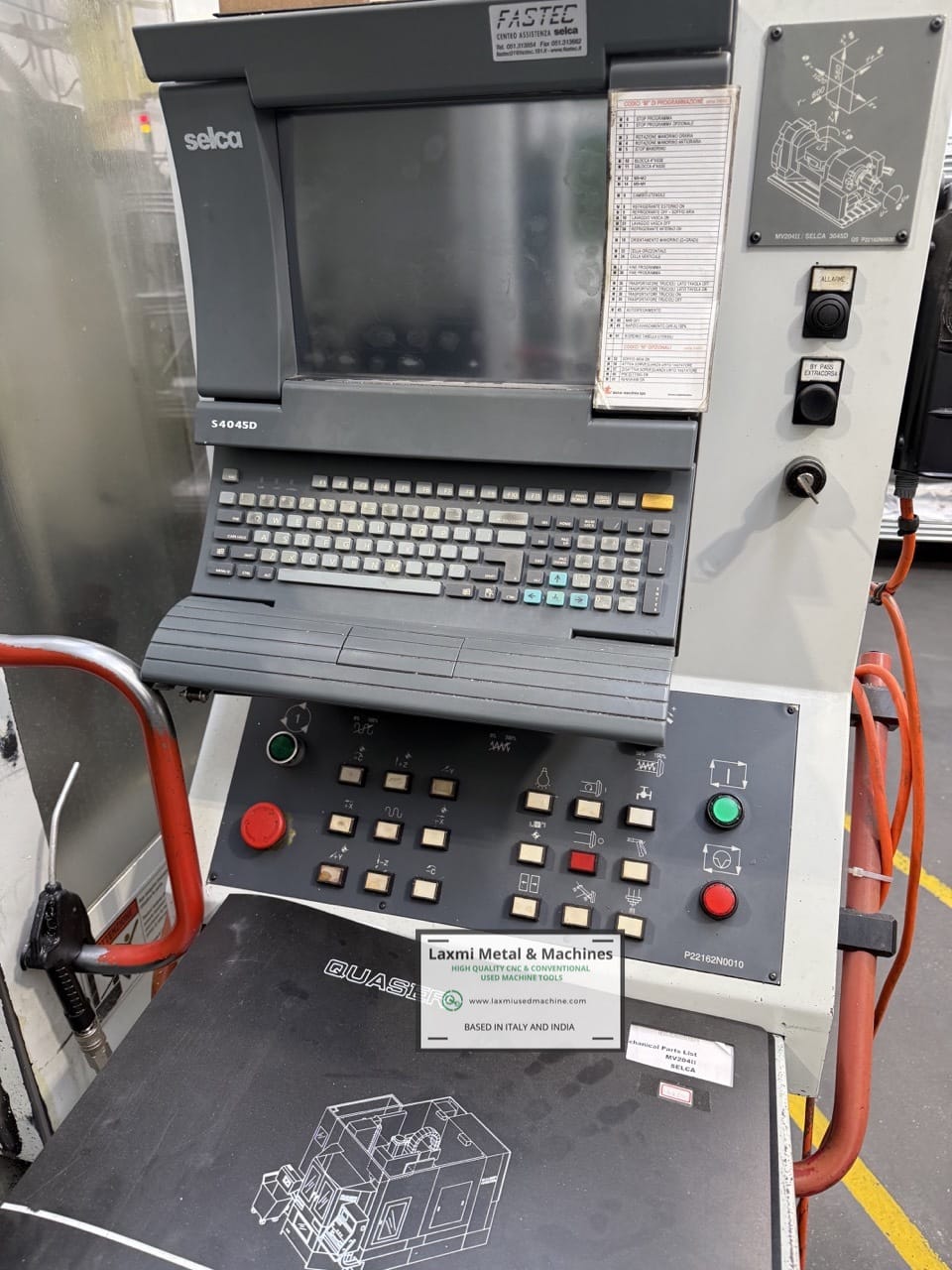

- CNC: SELCA 4045
- Baujahr: 2002
Axis Travel:
- X (Longitudinal movement of column): 1020 mm
- Y (Cross movement column): 600mm
- Z (Vertical movement of spindle head): 560 mm

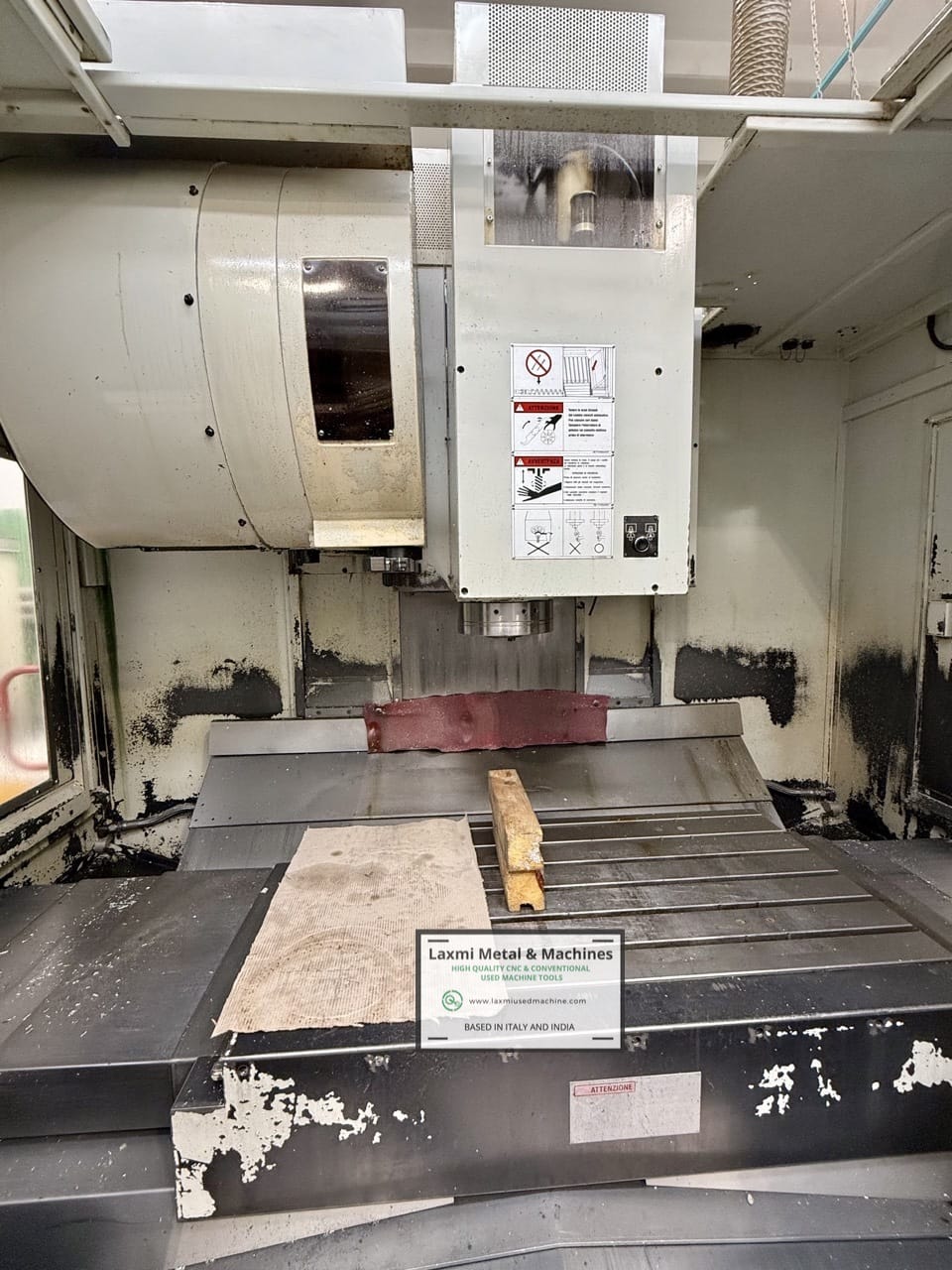

Tisch:
- Tischgröße:1020×550 mm
- Table loading capacity: 300kg x2
Spindel:
- max. Spulengeschwindigkeit: 10000 min^-1
- Type of spindle taper hole: ISO 40/BT40
- Tool storage capacity: 32
- Mass of machine: 8500 kg
Andere Informationen:
The machine has been checked and is in excellent working condition and is complete in all its parts and accessories.
Equipped with double pallet and chip conveyor.
