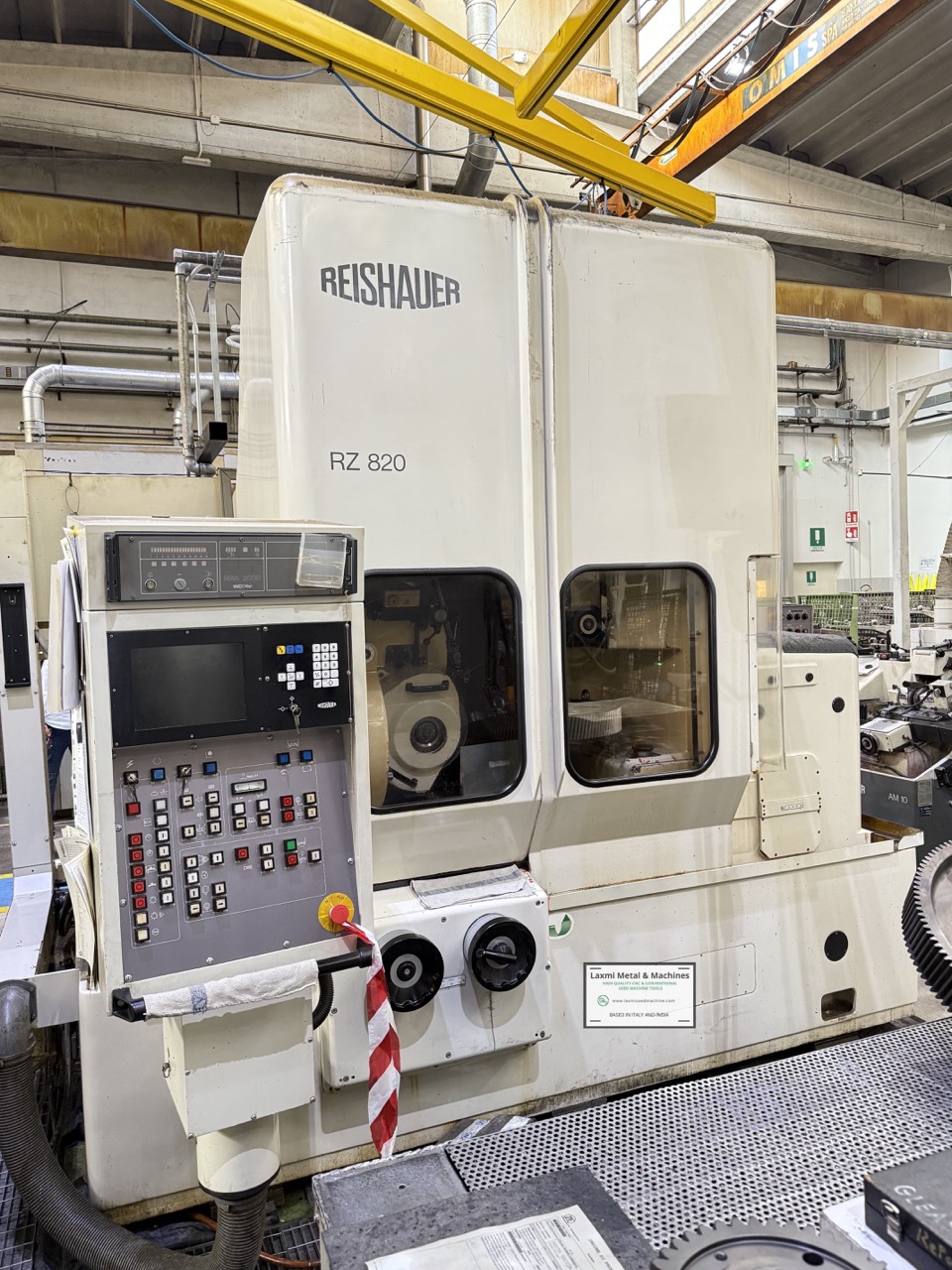

CNC GEAR GRINDER, REISHAUER – RZ 820

Land

Hier ist unsere CNC GEAR GRINDER.

It is in excellent working condition, for any further information we are at your disposal!

Fordern Sie ein Angebot an
Artikelnummer: cnc-gear-grinder-reishauer-rz-820 Kategorien: , Schlagwörter: , , , ,

Beschreibung

CNC-ZAHNFLANKENSCHLEIFMASCHINE

  • Make : REISHAUER
  • Model : RZ 820
  • YEAR OF MANUFACTURING : 1999

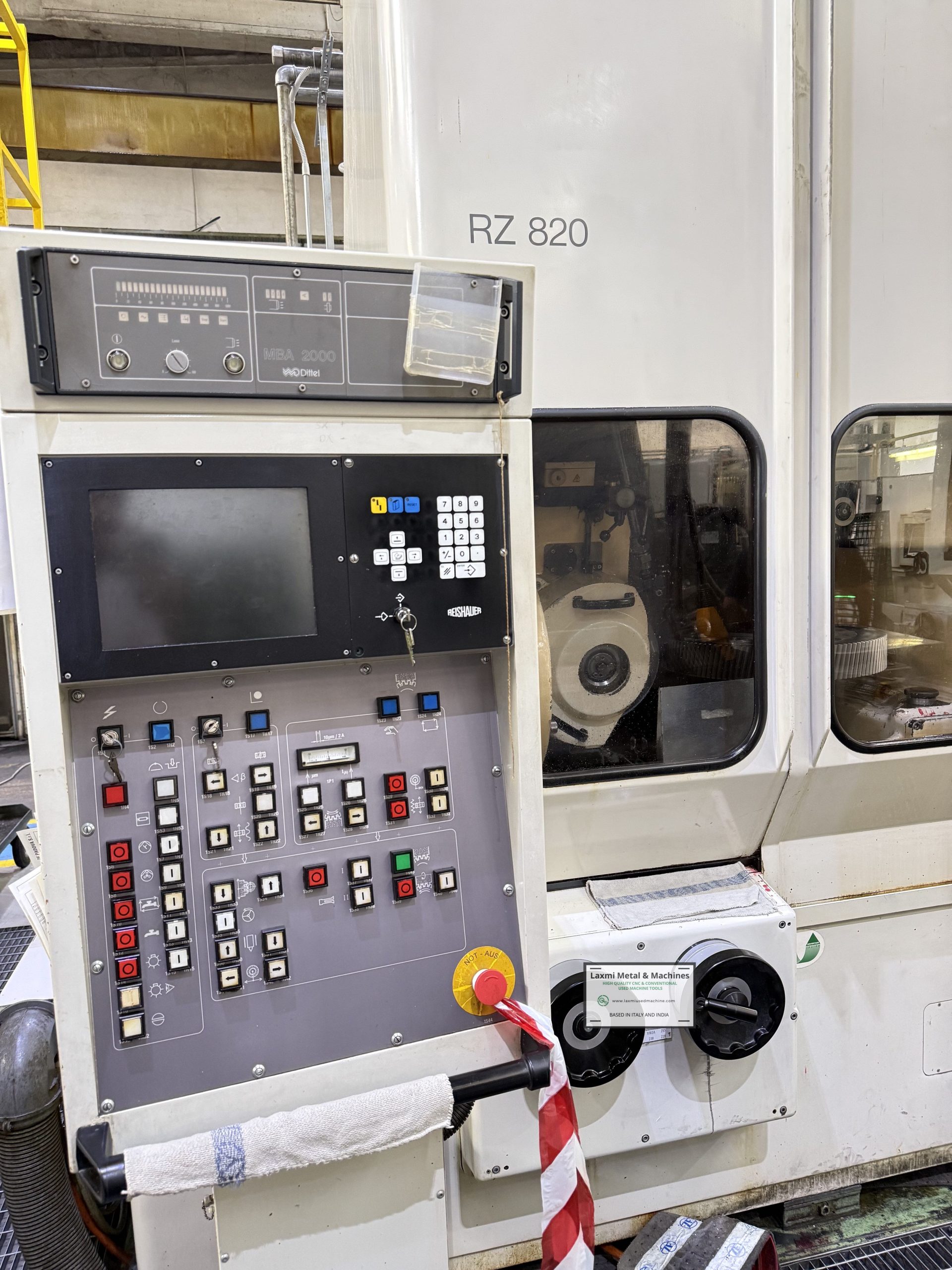

  • CNC : Reishauer
  • Machine is in very good condition and comes with:

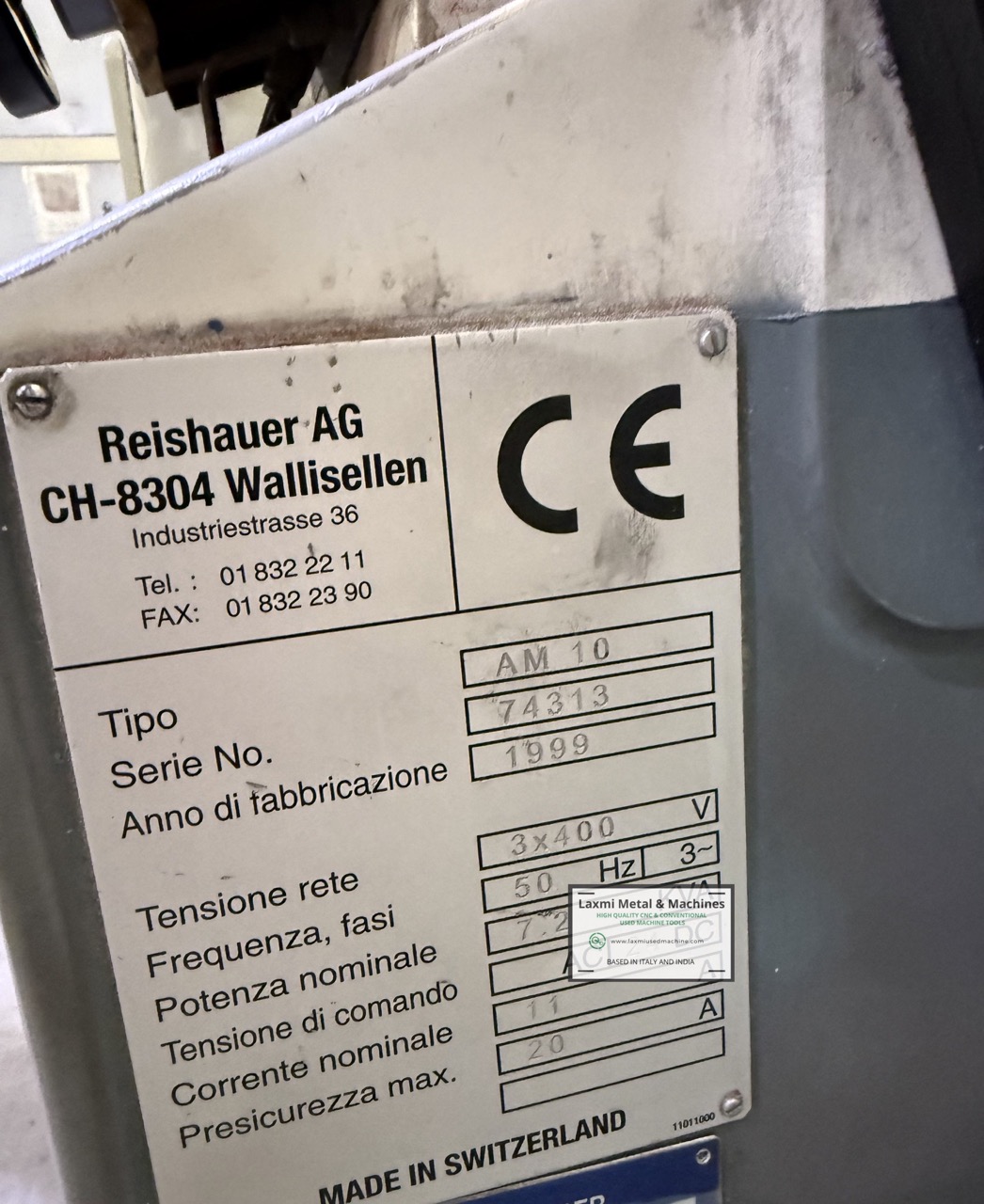

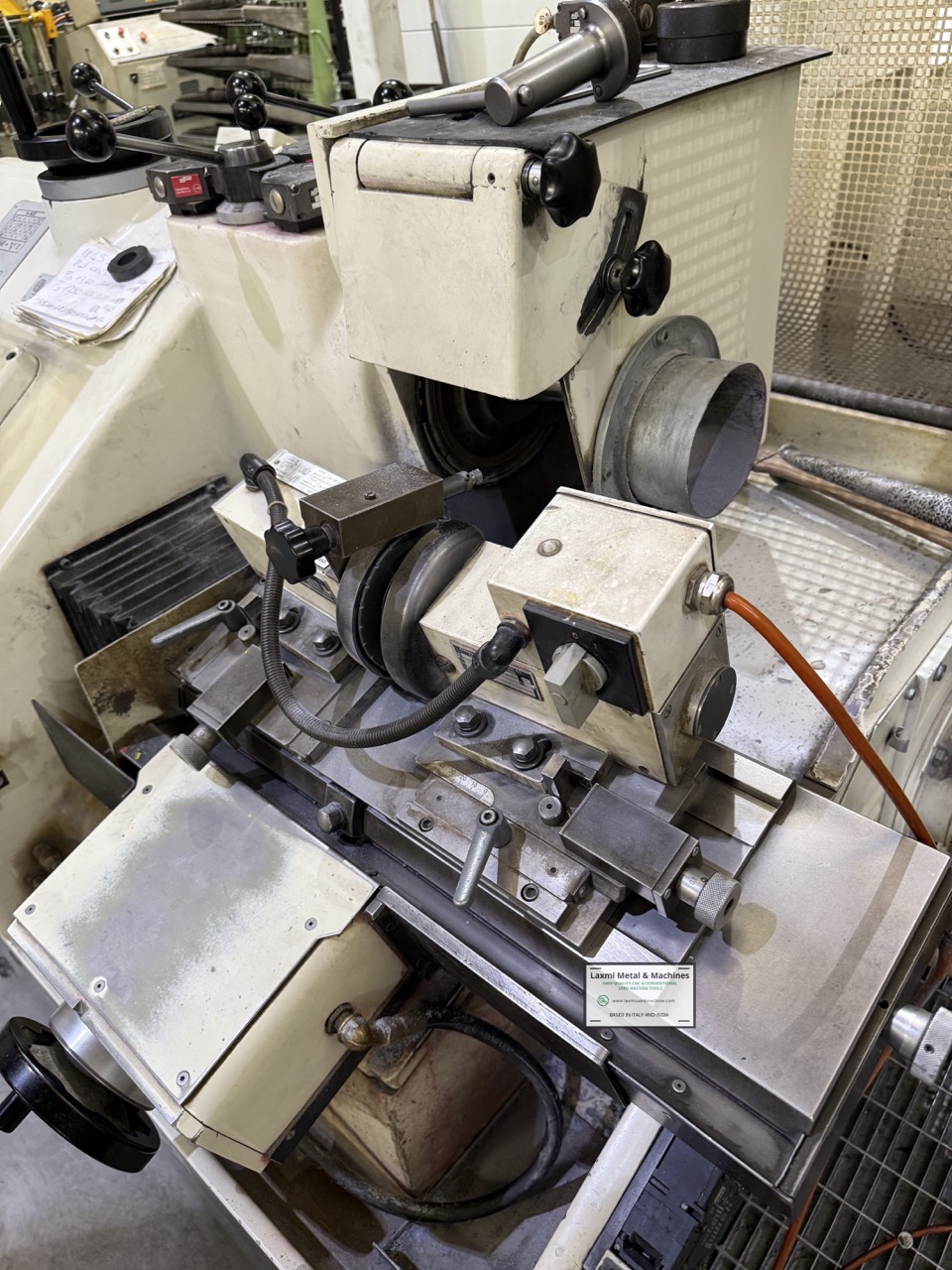

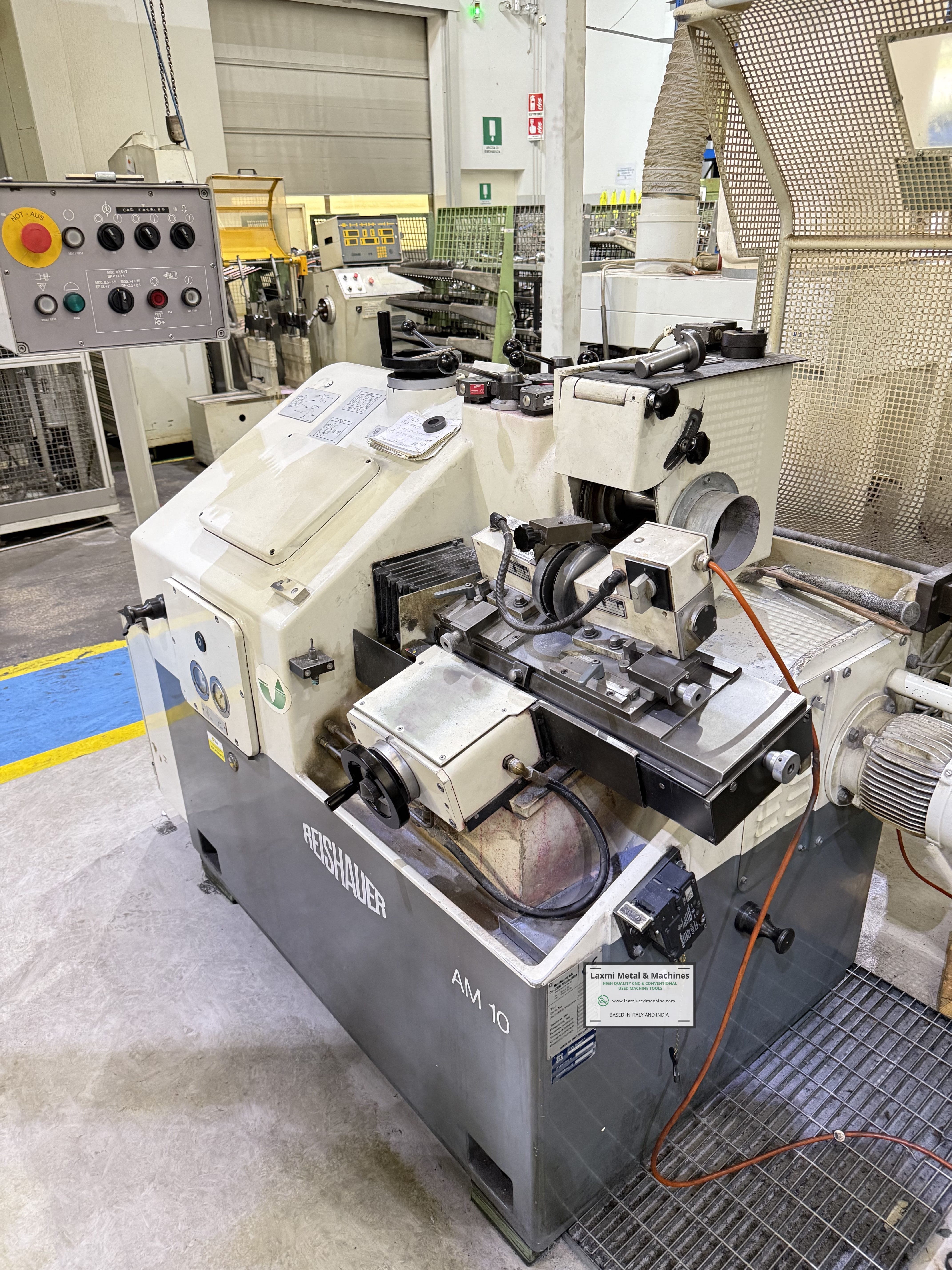

  •  -Reishauer AM-10  -with change wheels  -Fäsler (dresser)  -with Diamond wheel
  • Specification:
  • Wheel diameter: Max 820 mm – Min: 40 mm
  • Gear width: 300 mm
  • Module:  Max: 8 – Min: 0.5
  • Clamping length: 1185 mm
  • Number of teeth: Max: 600 -Min: 10
  • Max helical angle: +/- 30 degrees
  • Workpiece weight: 300 kg

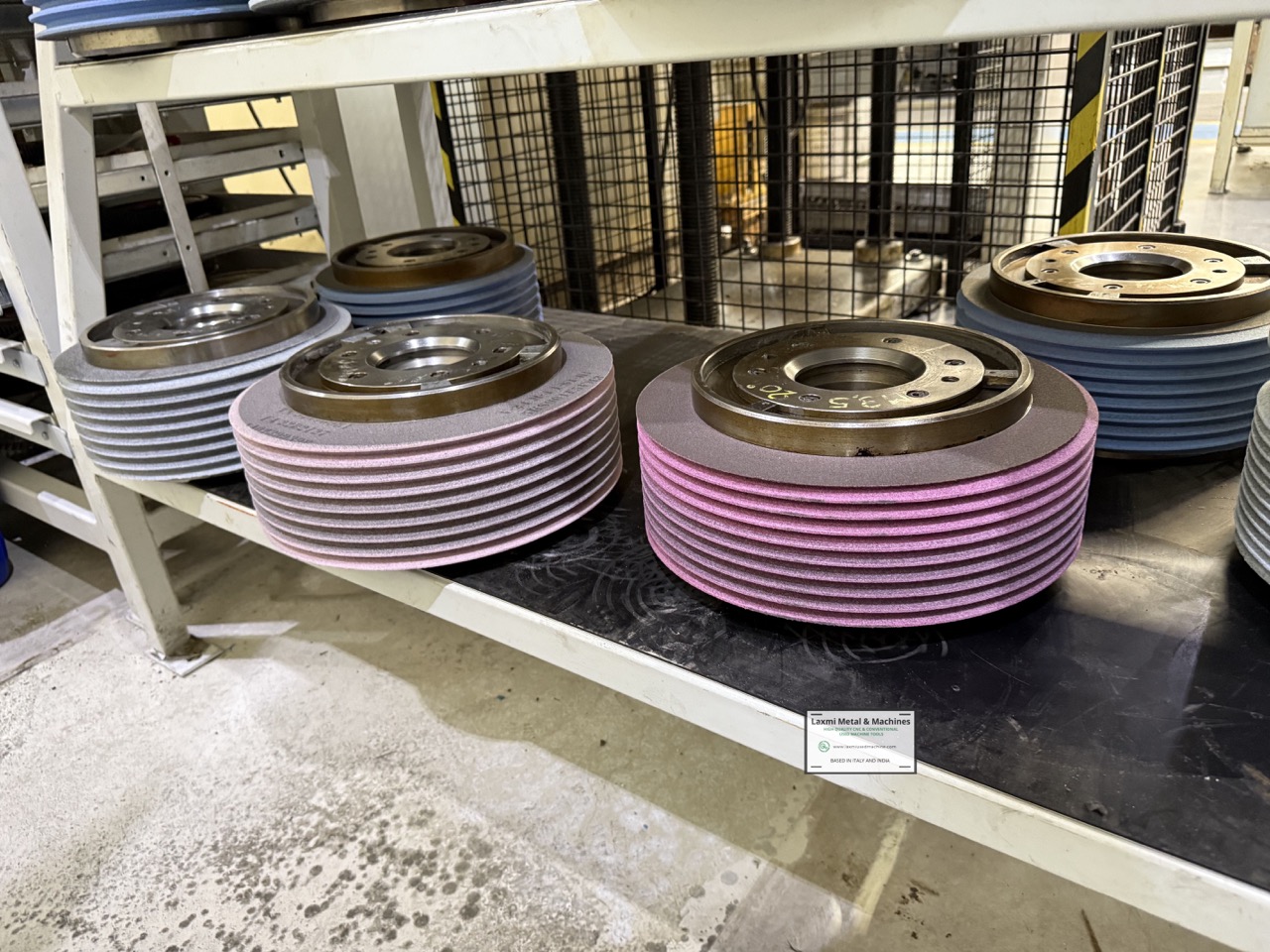

  • Grinding worm dia.: 280-400 mm
  • width of grinding worm: 84/104 mm
  • Grinding worm turning speeds (at grinding): 1100-2150 U/min
  • Total power requirement: 30 kW
  • Machine weight: 10 ton

Andere Information
THE MACHINE IS IN EXCELLENT CONDITIONS AND COMPLETE IN ALL ITS PARTS and ACCESSORIES
